NORSTAR FLATBED

NORSTAR FLATBED

SH

Hydraulic Arm Hay Bed
Learn More

HB1

Hay Spear Option
Learn More

SR

Norstar Diamond Plate Flat Bed
Learn More

SH

Request a Quote

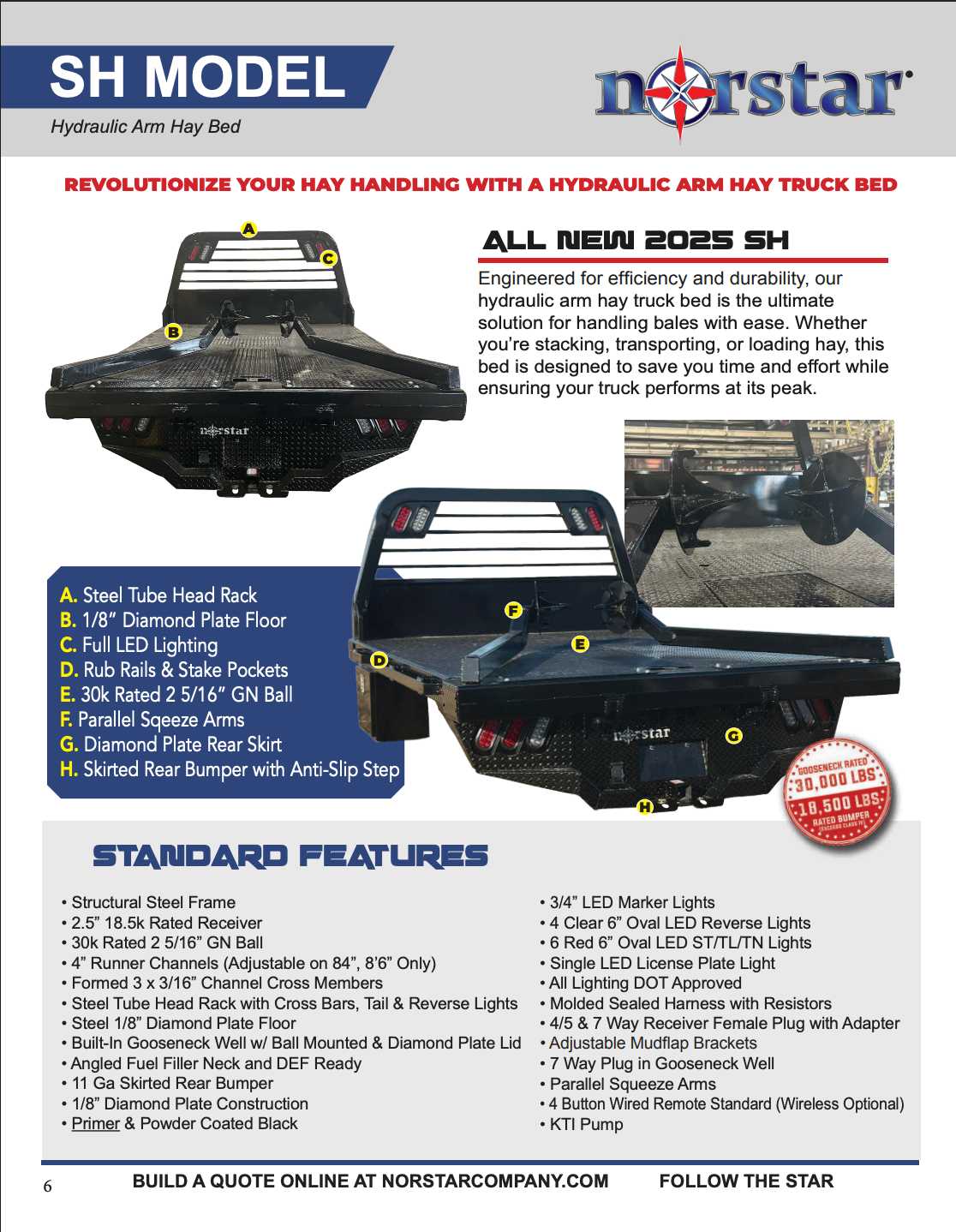

Overview

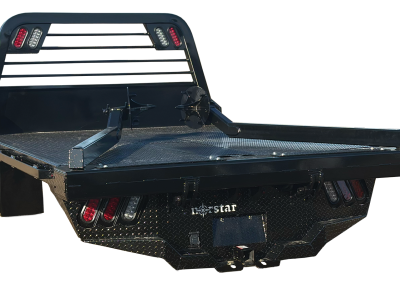

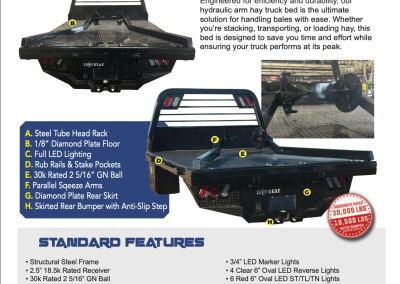

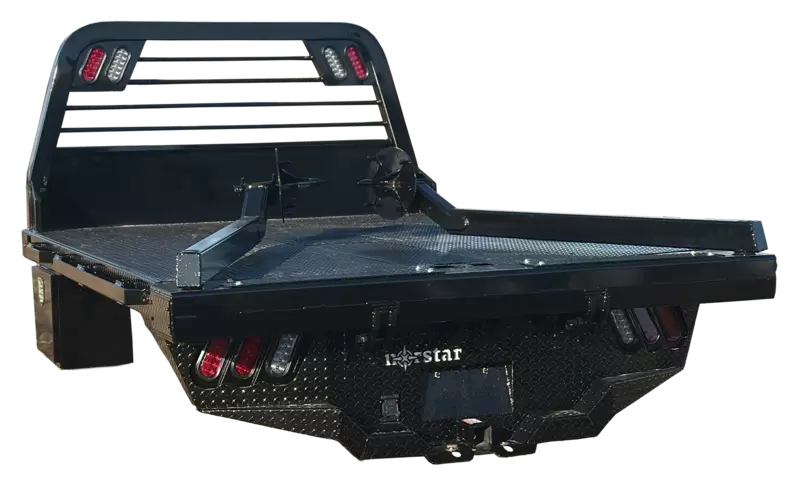

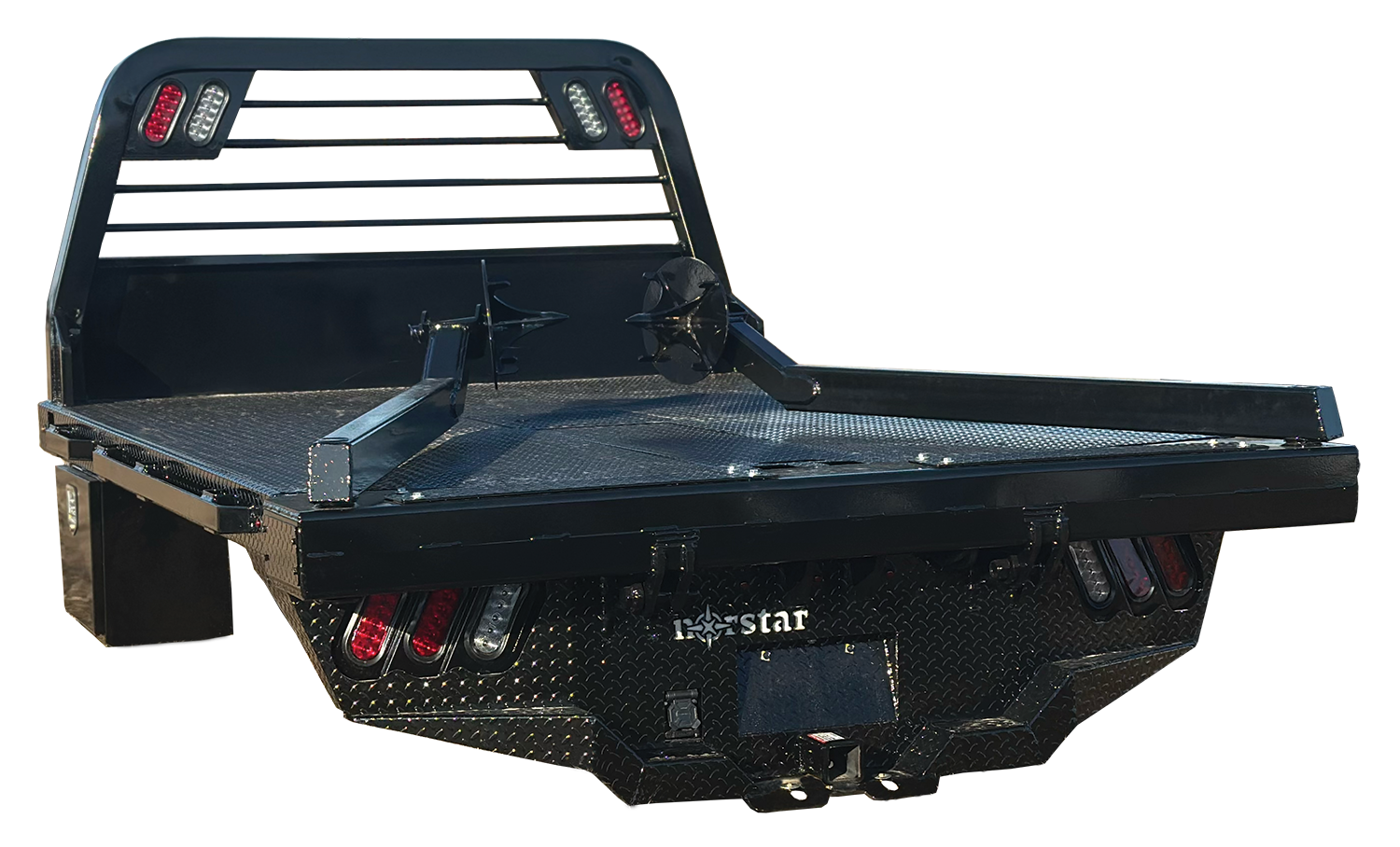

Engineered for efficiency and durability, our hydraulic arm hay truck bed is the ultimate solution for handling bales with ease. Whether you’re stacking, transporting, or loading hay, this bed is designed to save you time and effort while ensuring your truck performs at its peak.
View Specifications

Gallery

Bed Size Guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

  • Length: Measurement from cab to end of frame.
  • Width: Measurement from outside of tire to outside of tire
  • CTA: Measurement from cab to axle
  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
  • Models: ST, SF, SR, SD
  • Order Method: Model x Length x Width x CTA x Runner
  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

1998-Present

  • Dually – 8’6”L x 97”W x 56” CTA x 38” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner

  • Cab & Chassis – 9’4”L x 94”/97''W x 60”CTA x 34” Runners

  • F-450 & 550 are 94” & 97”W with Standard Headache Rack

  • 2015 F650 Runners 34.5”

2001-Present

  • Dually – 8’6”L x 97”W x 56”CTA x 42” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner

  • Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners

  • (Prior to 2000 measurements will be required)

  • 4500 & 5500 is 94”W with 60” Headache Rack

2003-Present

  • 2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner

  • Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners

  • Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners

  • Dually – 8’6”L x 97”W x 58”CTA x 42” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner

  • 2002 and earlier will have 56” CTA and 38” Runners on long bed

Plug N Play Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

  • 1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)

  • 1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)

  • 1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)

  • 1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)

  • 1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)

  • 1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)

HB1

Request a Quote

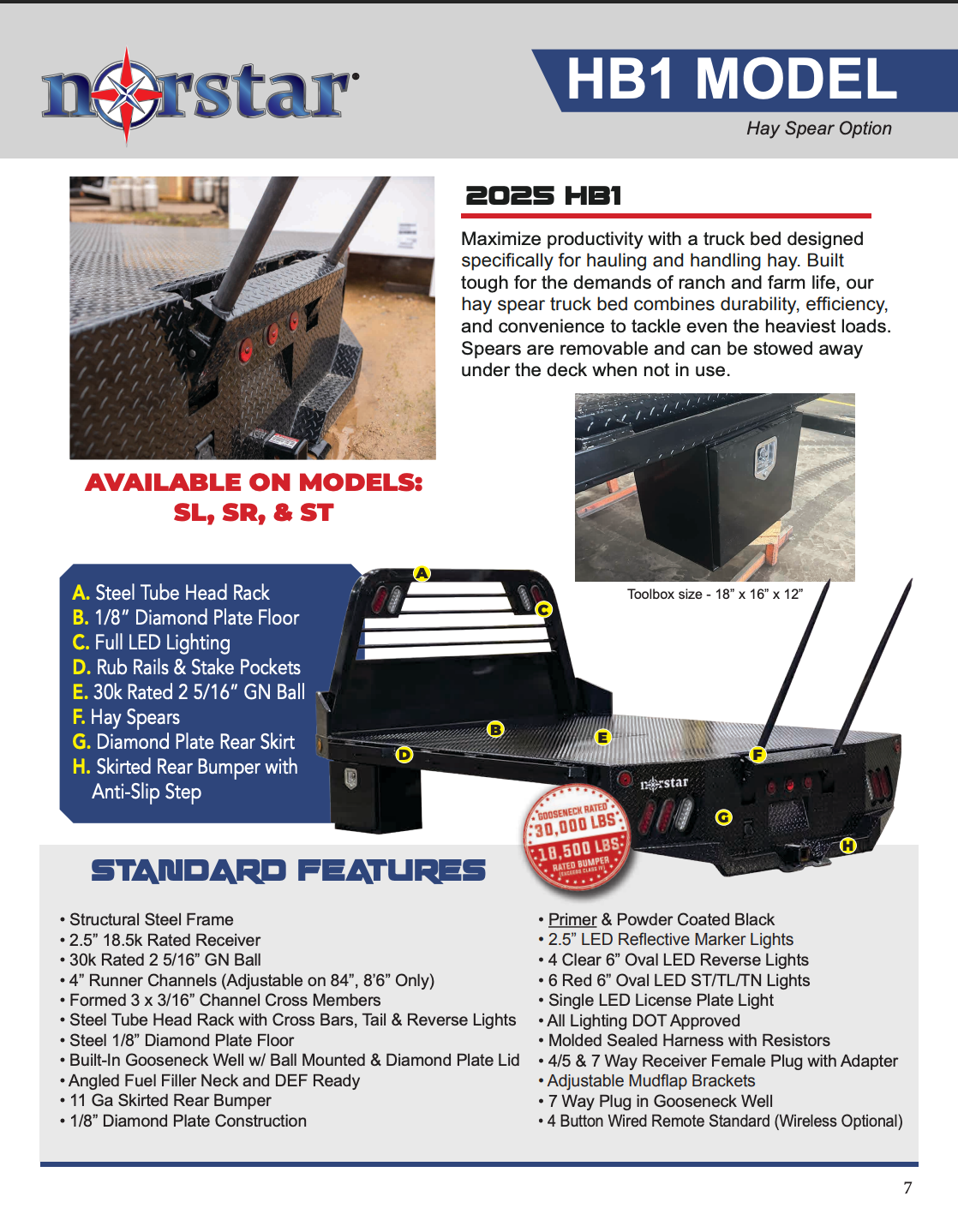

Overview

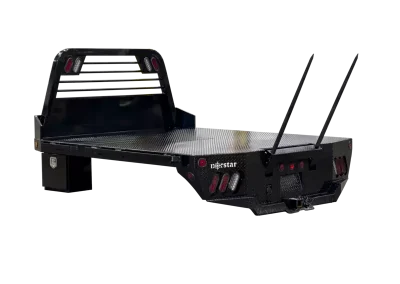

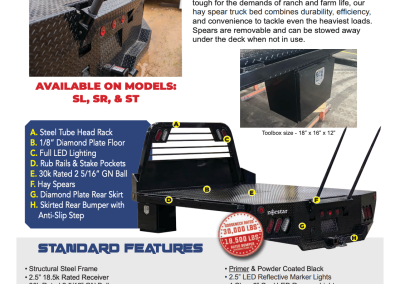

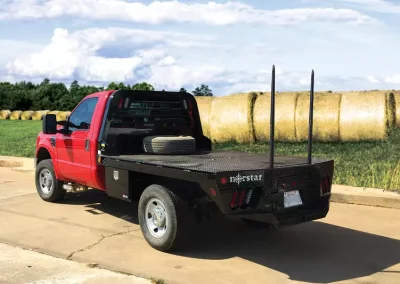

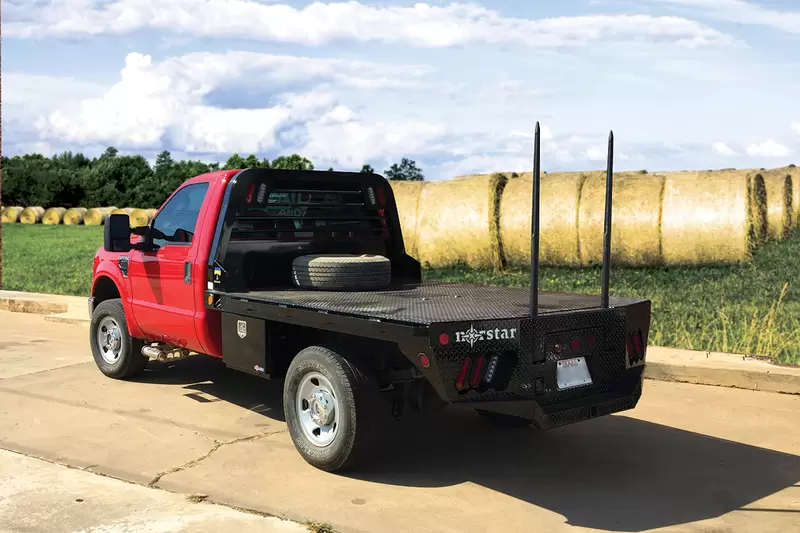

Maximize productivity with a truck bed designed specifically for hauling and handling hay. Built tough for the demands of ranch and farm life, our hay spear truck bed combines durability, efficiency, and convenience to tackle even the heaviest loads. Spears are removable and can be stowed away under the deck when not in use.

View Specifications

Gallery

Bed Size Guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

  • Length: Measurement from cab to end of frame.

  • Width: Measurement from outside of tire to outside of tire

  • CTA: Measurement from cab to axle

  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.

  • Models: ST, SF, SR, SD

  • Order Method: Model x Length x Width x CTA x Runner

  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

1998-Present

  • Dually – 8’6”L x 97”W x 56” CTA x 38” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner

  • Cab & Chassis – 9’4”L x 94”/97''W x 60”CTA x 34” Runners

  • F-450 & 550 are 94” & 97”W with Standard Headache Rack

  • 2015 F650 Runners 34.5”

2001-Present

  • Dually – 8’6”L x 97”W x 56”CTA x 42” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner

  • Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners

  • (Prior to 2000 measurements will be required)

  • 4500 & 5500 is 94”W with 60” Headache Rack

2003-Present

  • 2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
  • Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
  • Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
  • Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
  • Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
  • 2002 and earlier will have 56” CTA and 38” Runners on long bed

Plug N Play Installation Adapters

Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

  • 1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)

  • 1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)

  • 1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)

  • 1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)

  • 1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)

  • 1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)

SR

Request a Quote

Overview

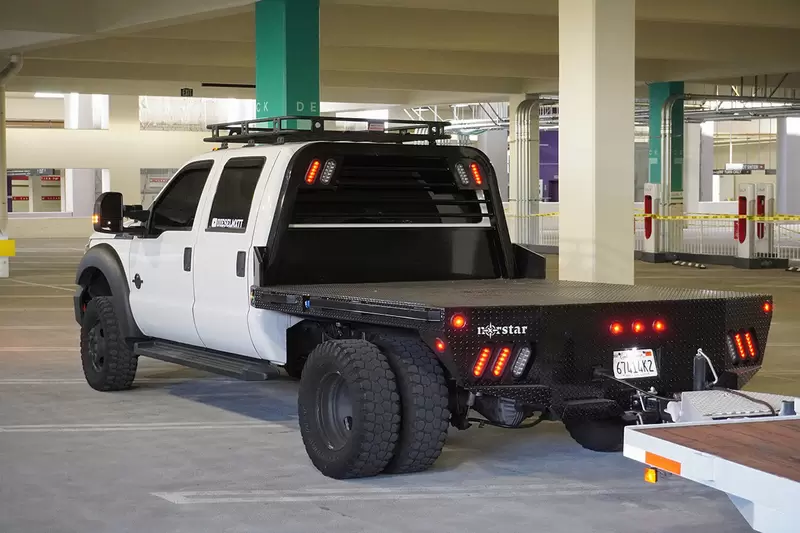

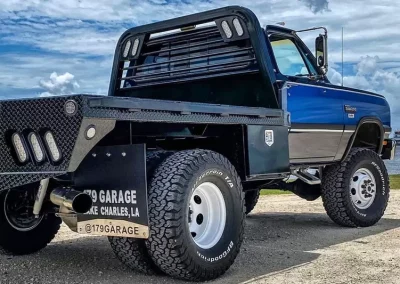

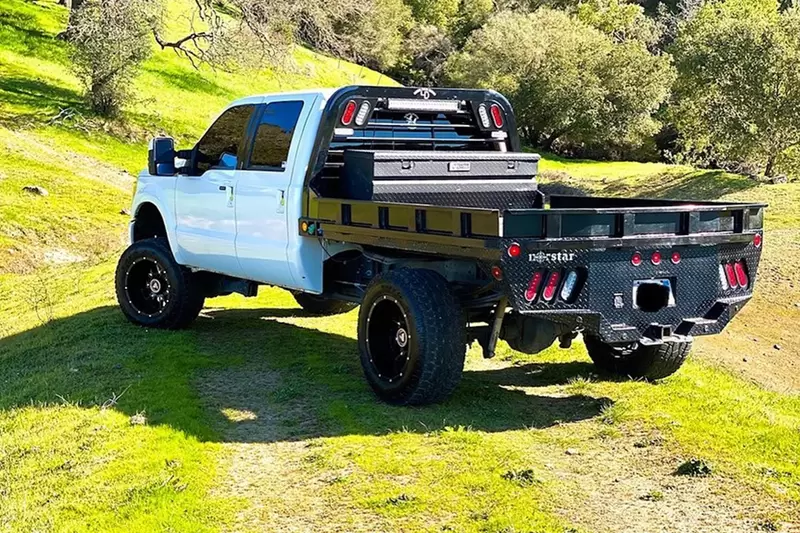

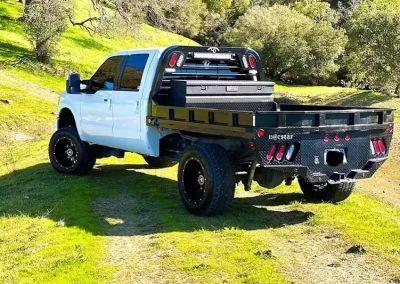

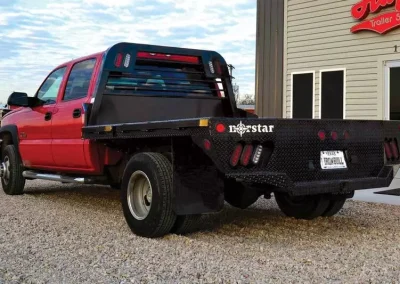

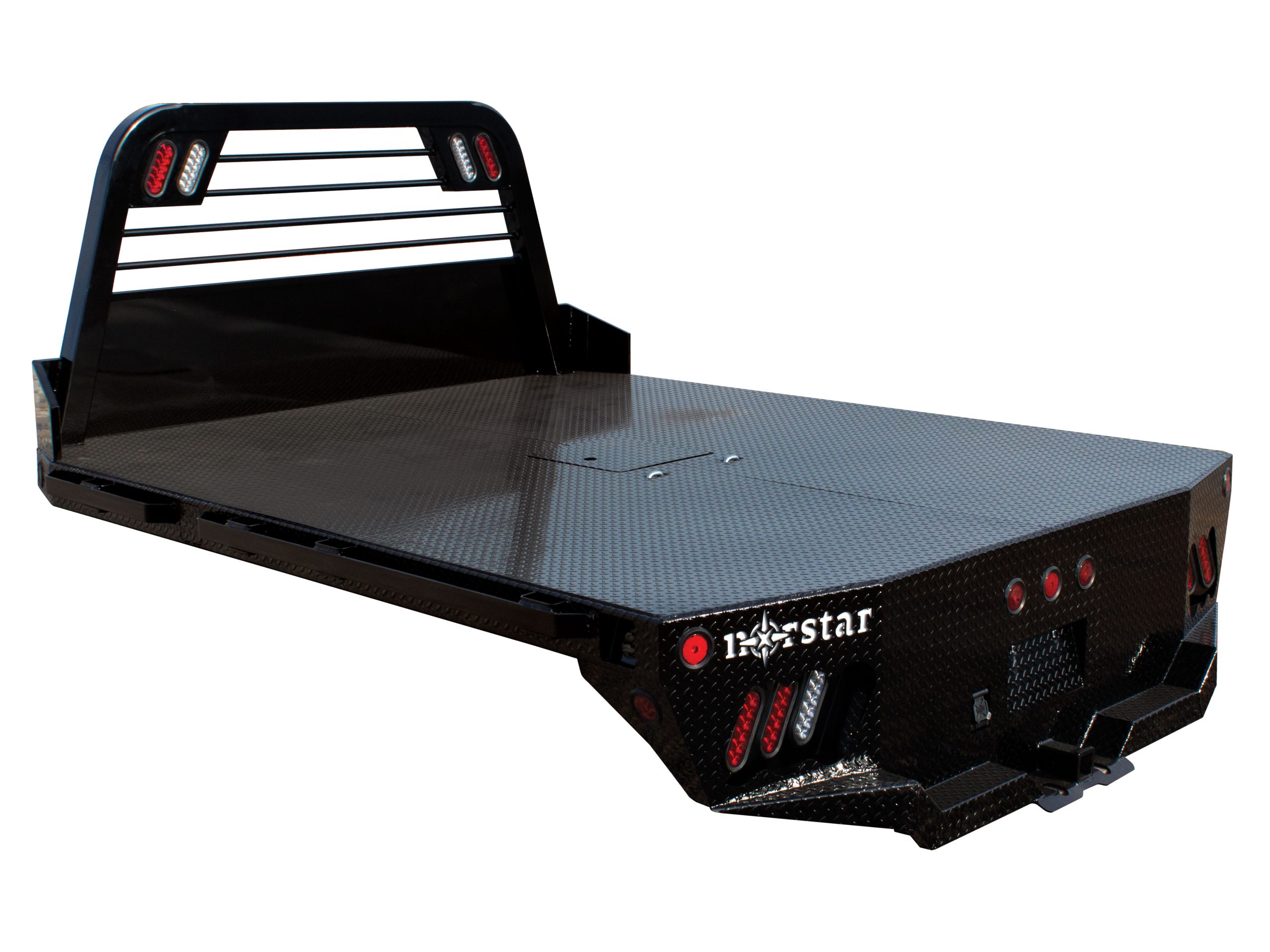

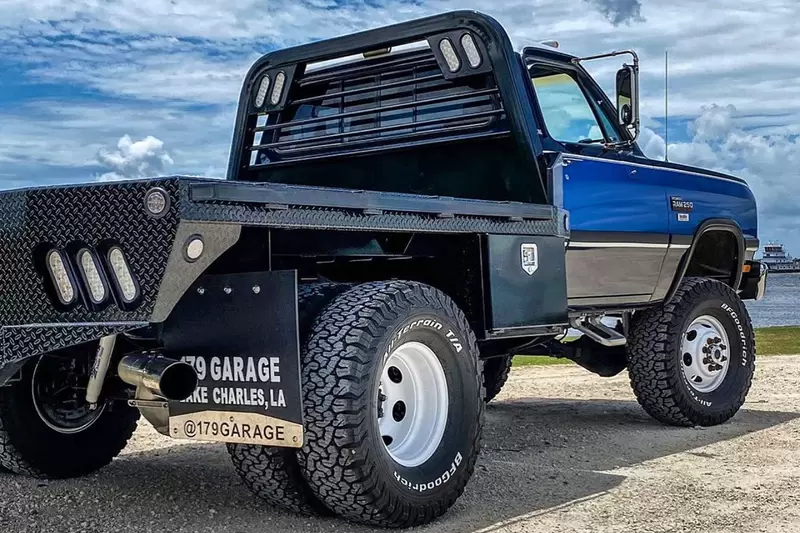

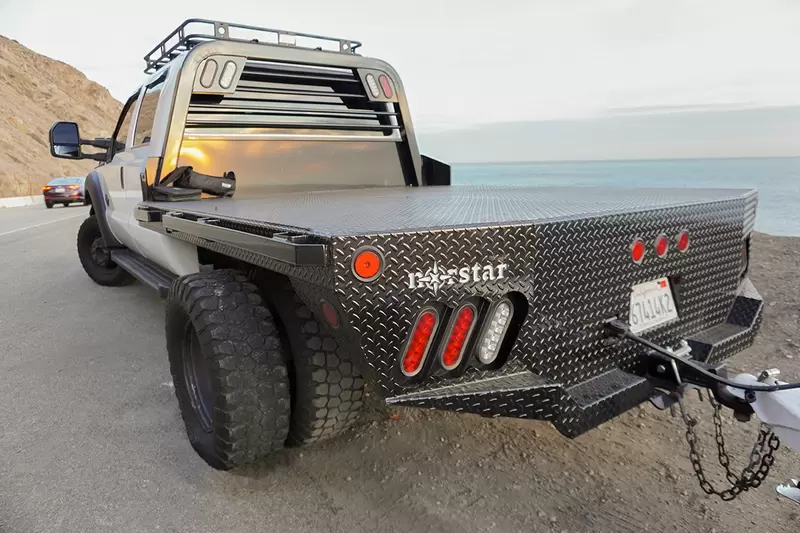

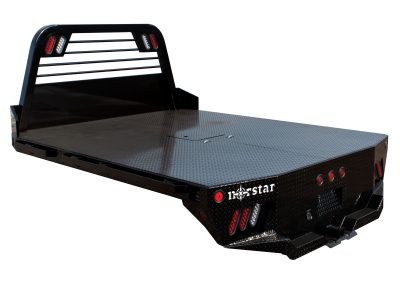

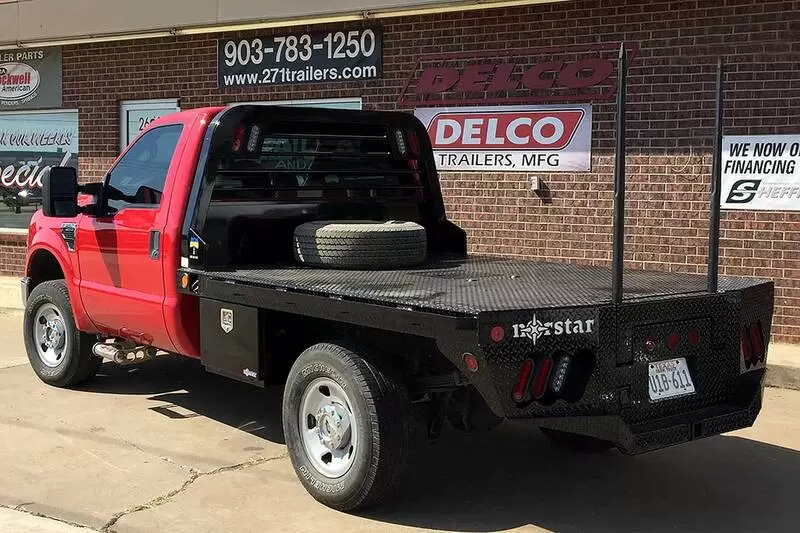

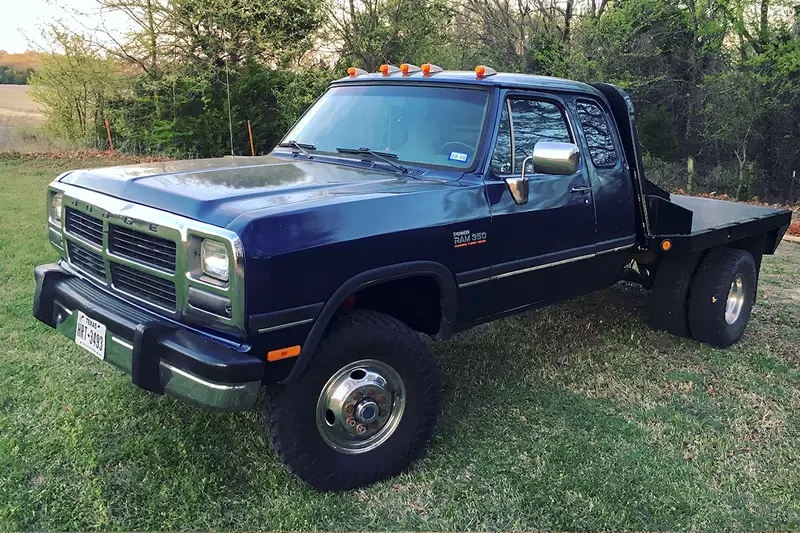

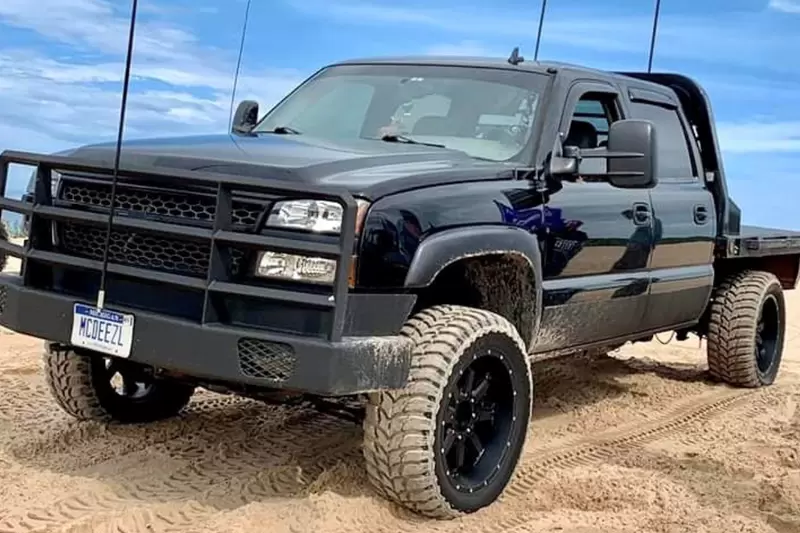

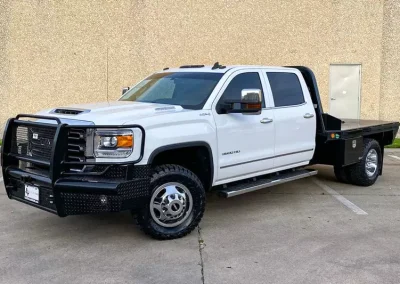

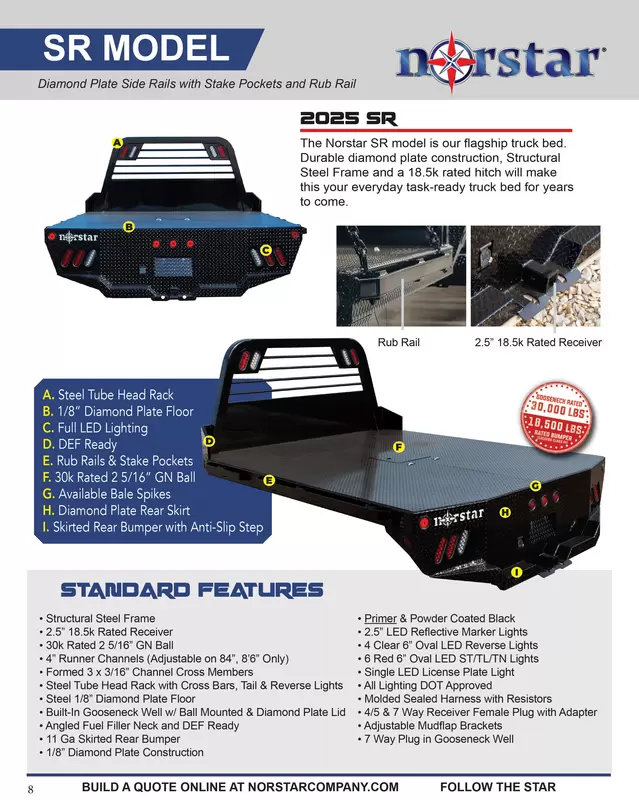

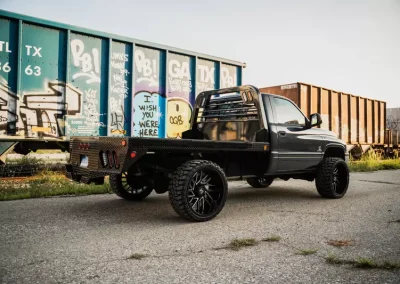

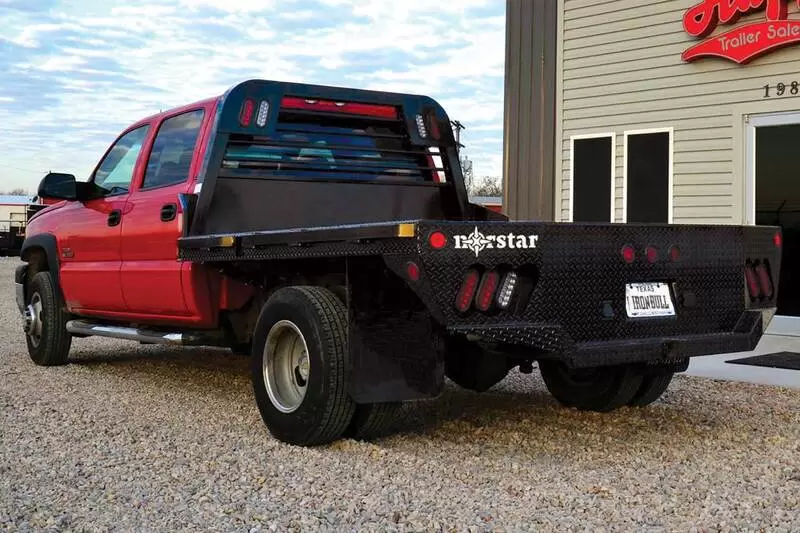

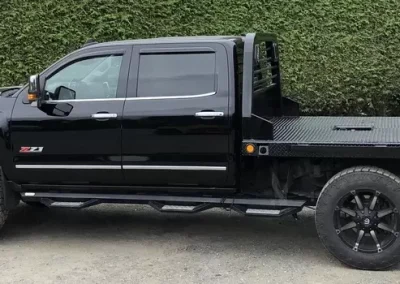

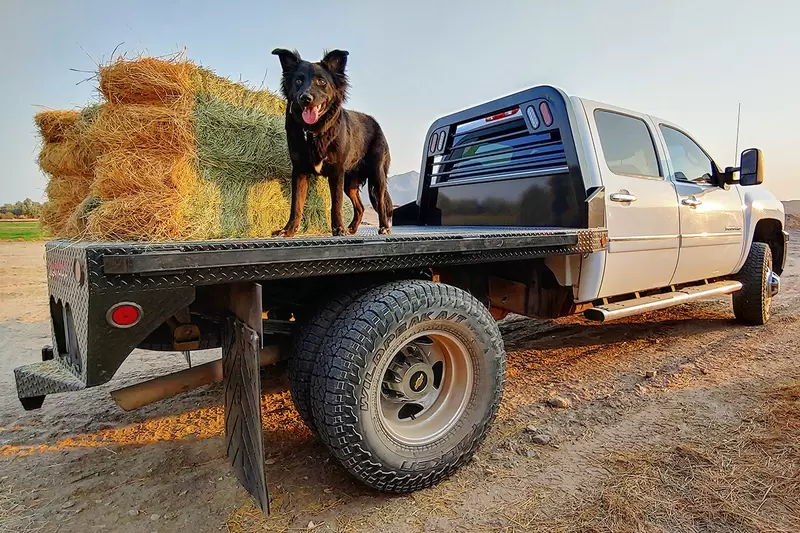

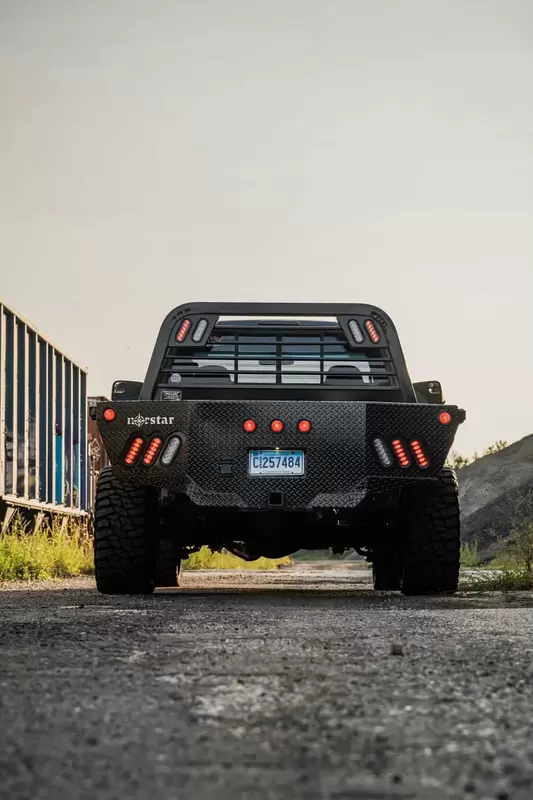

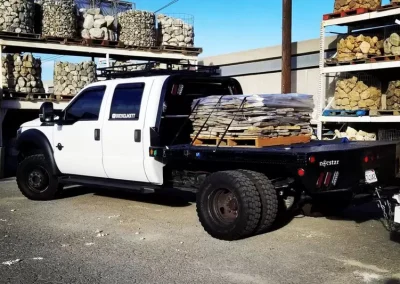

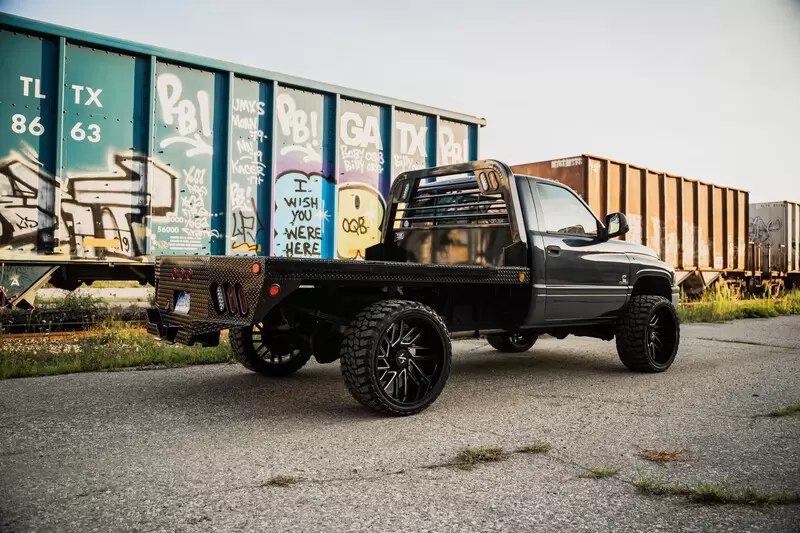

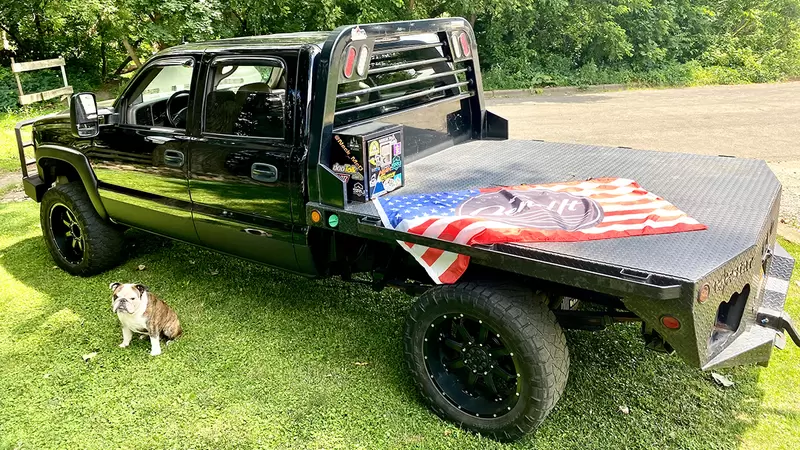

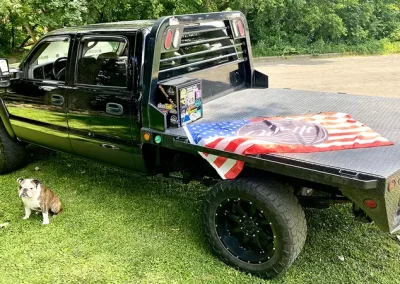

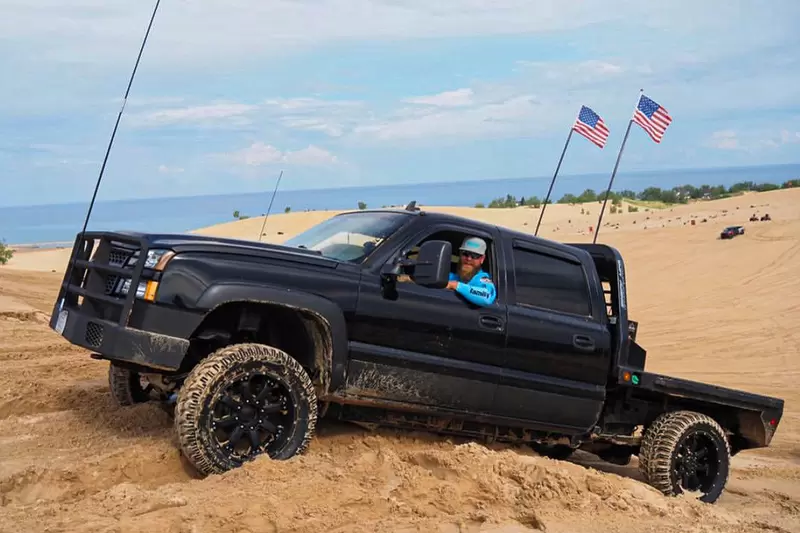

The Norstar SR model offers everything you need in a flatbed configuration. If you want a little more from this basic configuration, look over our options list. We have underbody locking tool boxes for additional storage and gooseneck troughs for a towing upgrade, spare tire mounts for the unexpected and a list of other options to personalize your bed for your home or business needs.

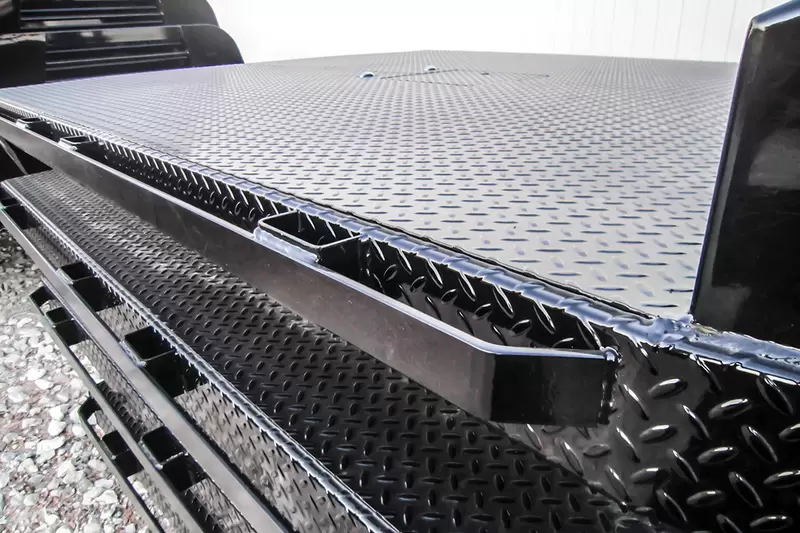

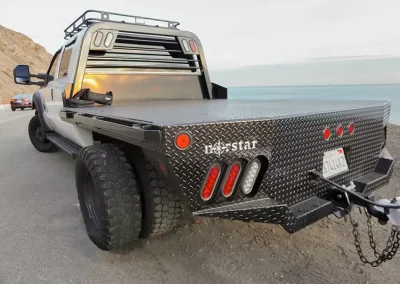

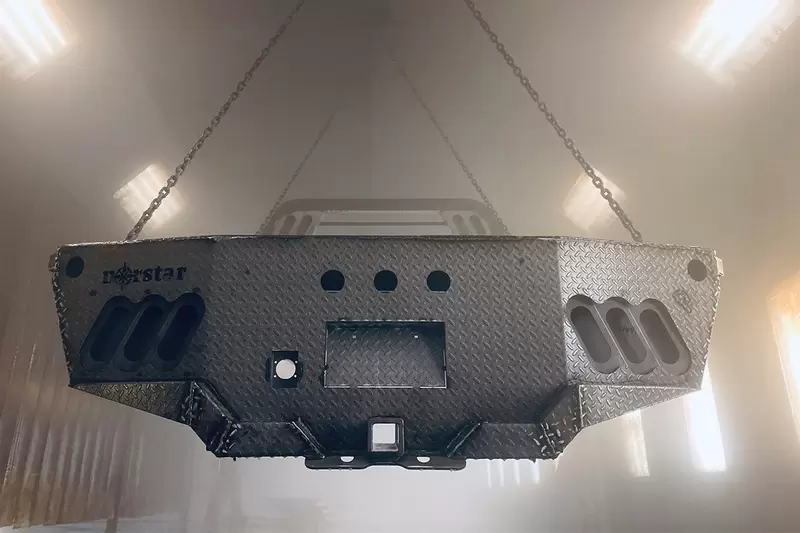

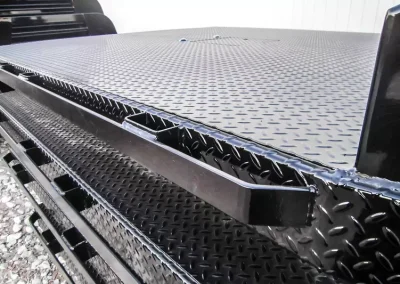

The standard 2.5″ receiver allows you to add a hitch for bumper pull cargo and a 2 5/16″ gooseneck ball is standard in case you are hauling a heavyweight. Our receivers are lab tested and certified for 18,500 lbs bumper capacity and 30,000 lbs gooseneck capacity. Durable diamond plate construction and powder coat will make this bed your most faithful assistant for years to come. Tapered corners, 7 way plug with 4 way adapter and recessed 2 5/16″ ball and receiver hitch give you a towing package standard. Exposed stake pockets and rub rail ensure you have tie down points for any load, plus the LED lights are standard on all SRs. Full 11 gauge skirted rear bumpers finish off every model as an additional standard feature.

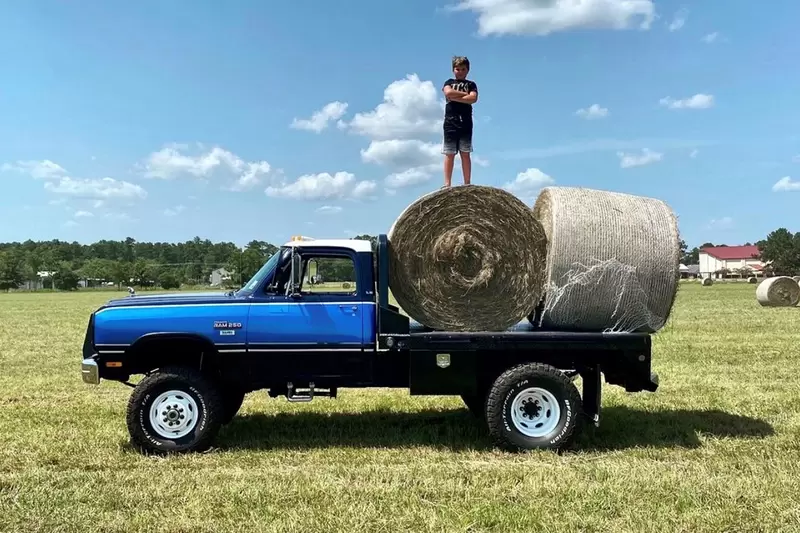

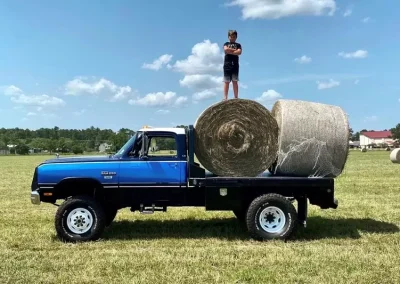

*HB1 is an optional upgrade available on select model truck beds. HB1 is designed to transport a single bale of hay over short distances in an agricultural setting. When hay forks are not in use they must be stored in a designated location. While hay forks are not in use it is not recommended to operate vehicle at highway speeds. HB1 option is designed for lifting and transporting a single bale of hay only. Any other use is not recommended.

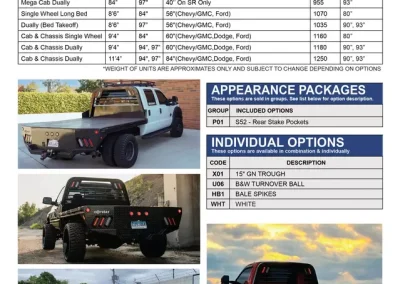

View Specifications

Gallery

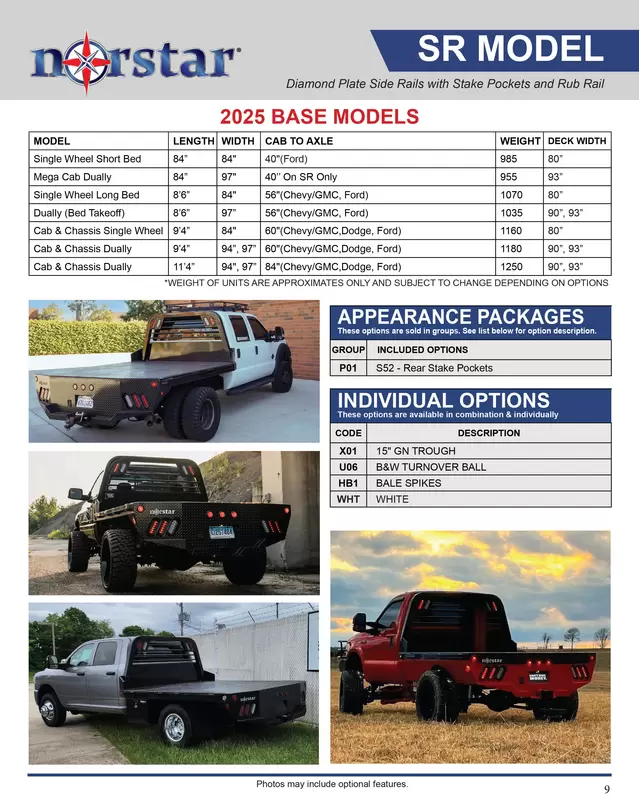

Bed Size Guide

Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.

  • Length: Measurement from cab to end of frame.

  • Width: Measurement from outside of tire to outside of tire

  • CTA: Measurement from cab to axle

  • Runner: Measurement from outside of frame to outside of frame at the rear of the frame.

  • Models: ST, SF, SR, SD

  • Order Method: Model x Length x Width x CTA x Runner

  • Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA

1998-Present

  • Dually – 8’6”L x 97”W x 56” CTA x 38” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner

  • Cab & Chassis – 9’4”L x 94”/97''W x 60”CTA x 34” Runners

  • F-450 & 550 are 94” & 97”W with Standard Headache Rack

  • 2015 F650 Runners 34.5”

2001-Present

  • Dually – 8’6”L x 97”W x 56”CTA x 42” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner

  • Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners

  • (Prior to 2000 measurements will be required)

  • 4500 & 5500 is 94”W with 60” Headache Rack

2003-Present

  • 2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner

  • Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners

  • Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners

  • Dually – 8’6”L x 97”W x 58”CTA x 42” Runners

  • Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner

  • Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner

  • 2002 and earlier will have 56” CTA and 38” Runners on long bed

Plug N Play Installation Adapters

Installation Adapters

The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:

  • 1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)

  • 1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)

  • 1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)

  • 1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)

  • 1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)

  • 1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)
