NORSTAR SKIRTED BED
ST
Overview

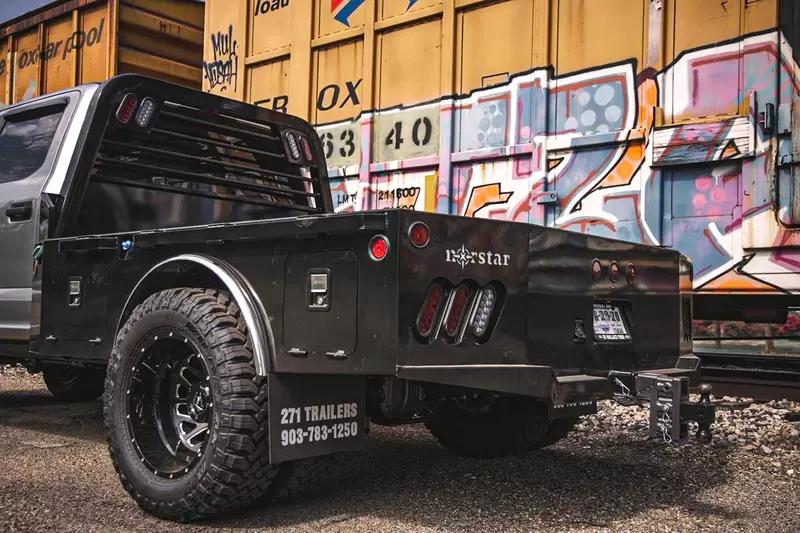

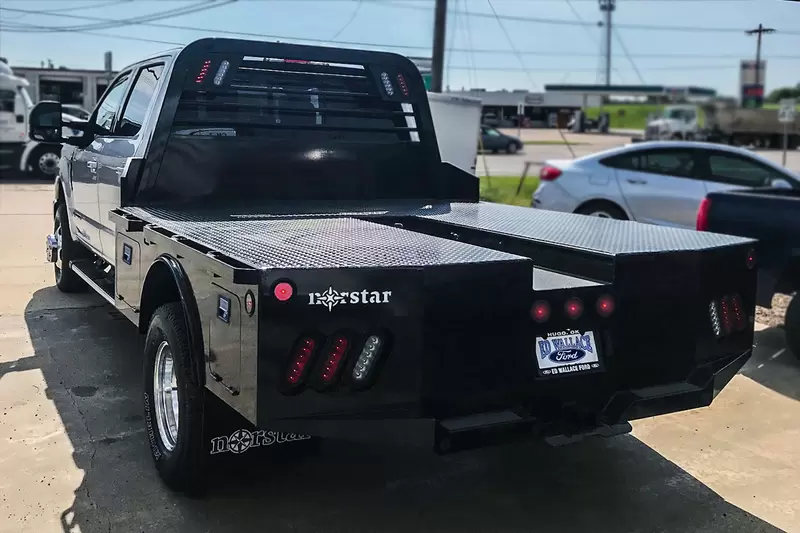

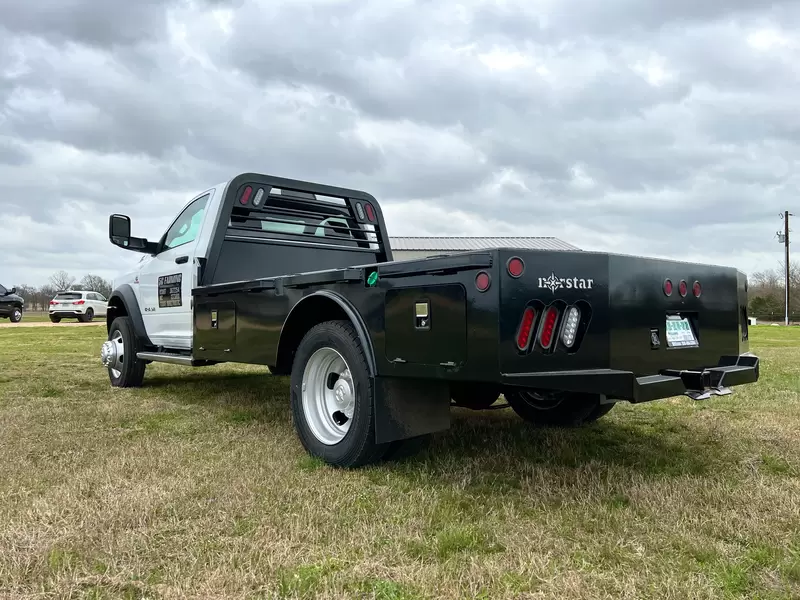

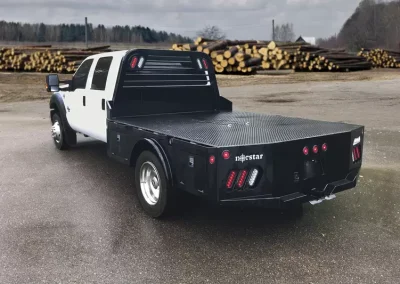

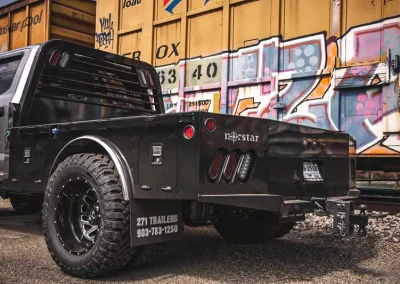

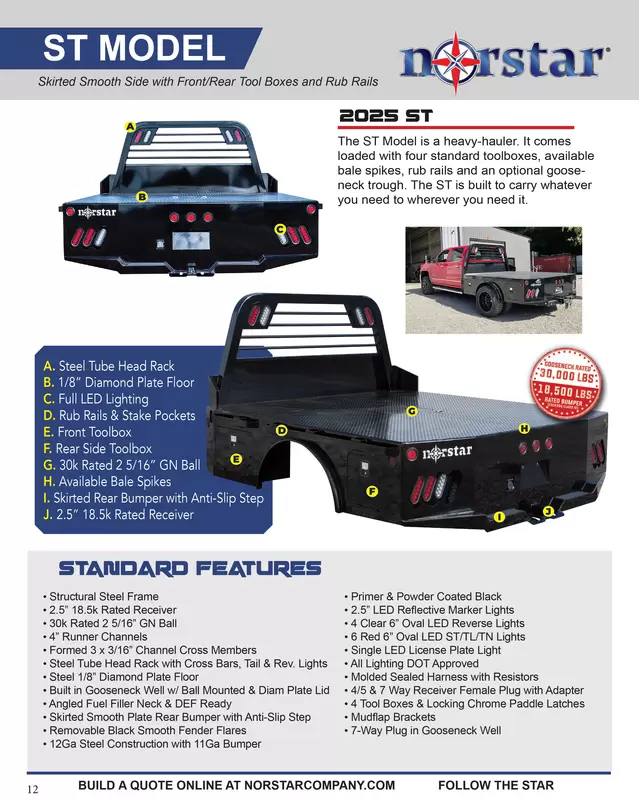

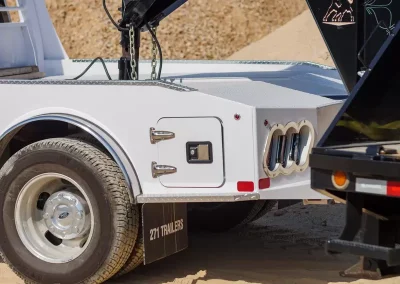

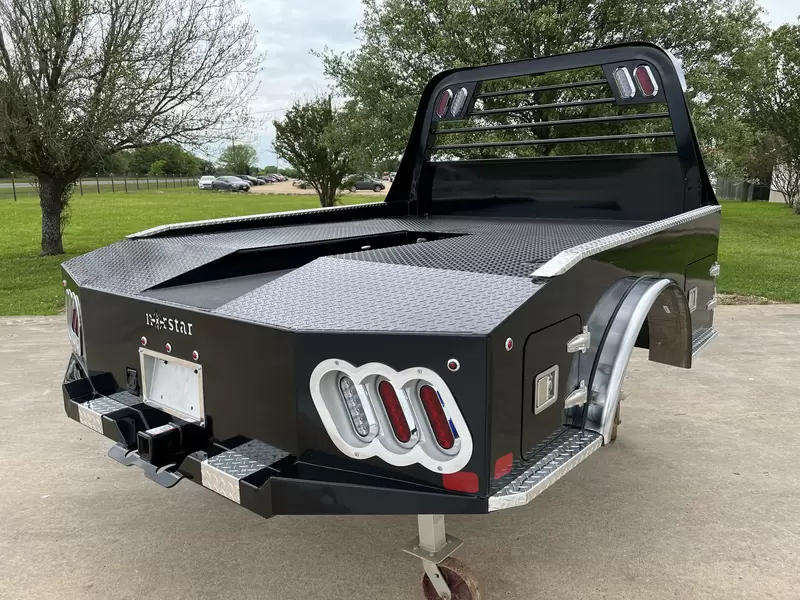

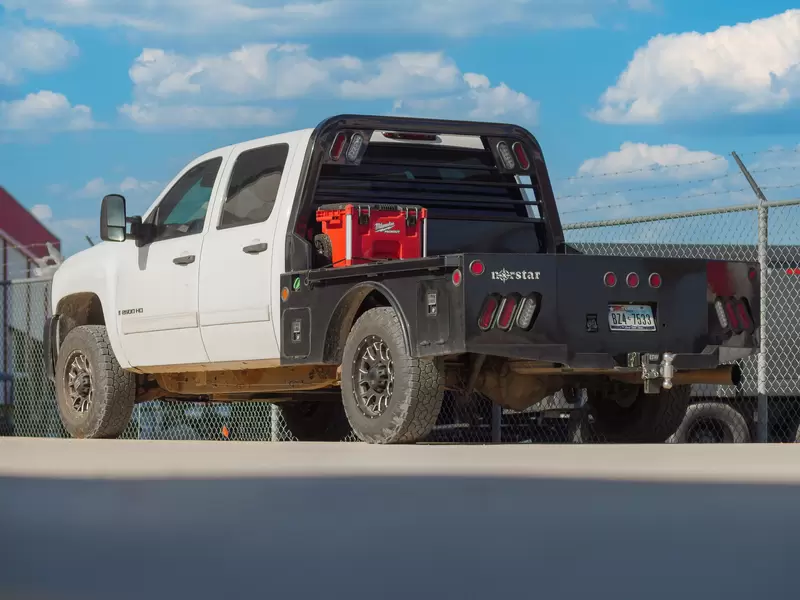

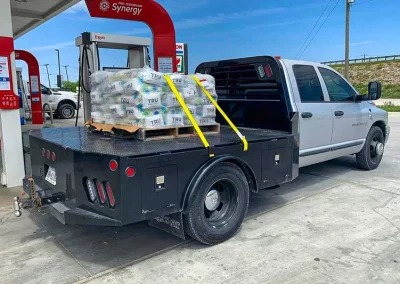

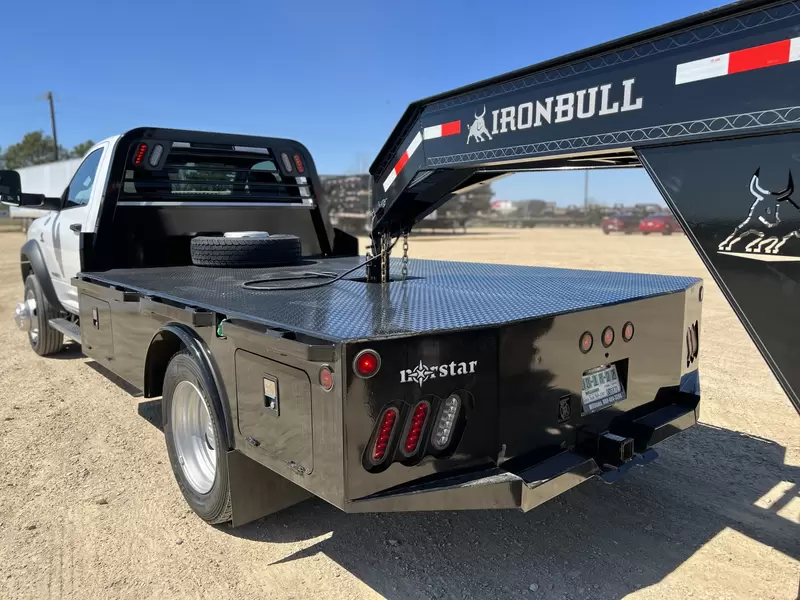

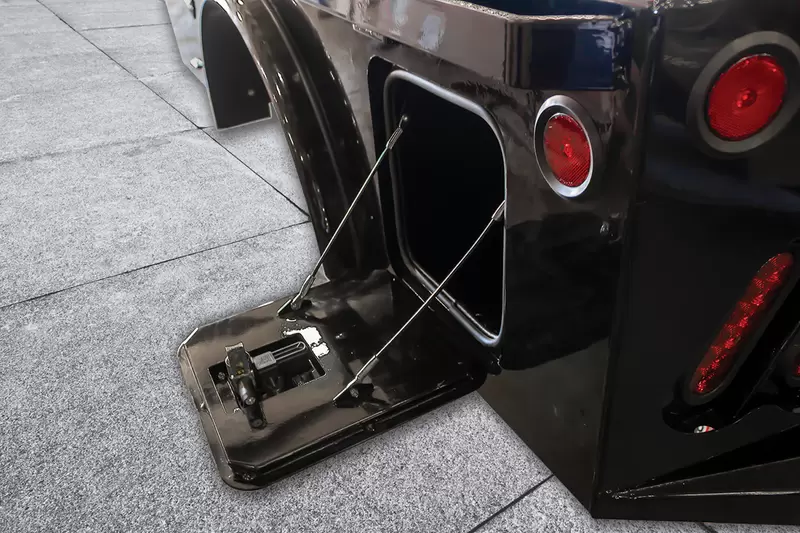

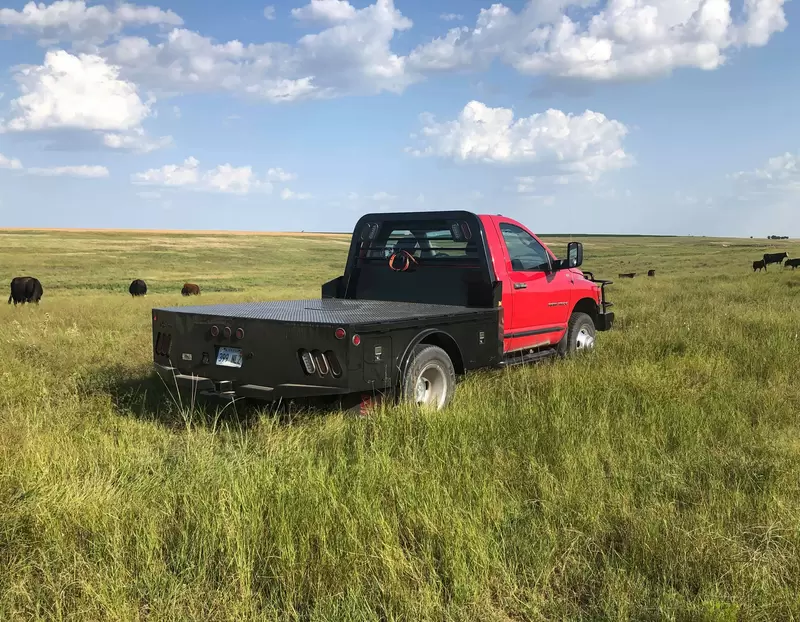

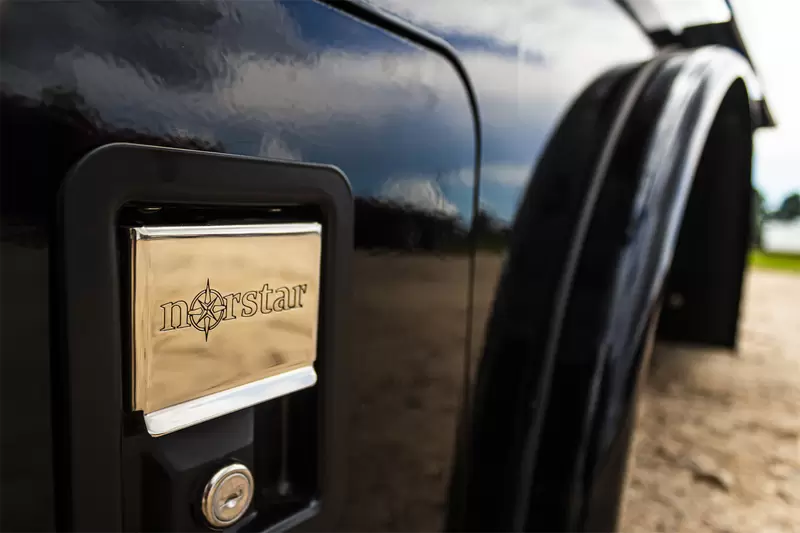

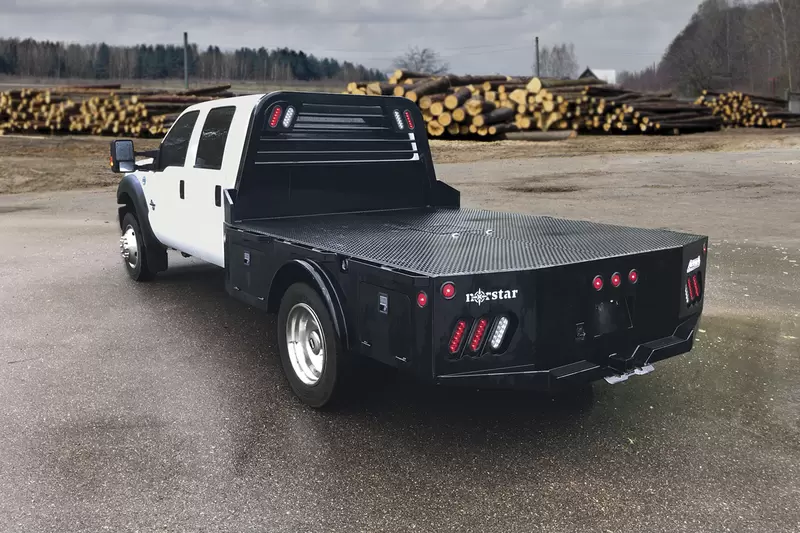

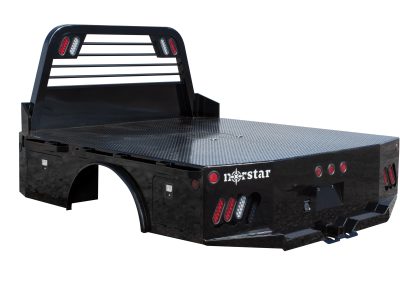

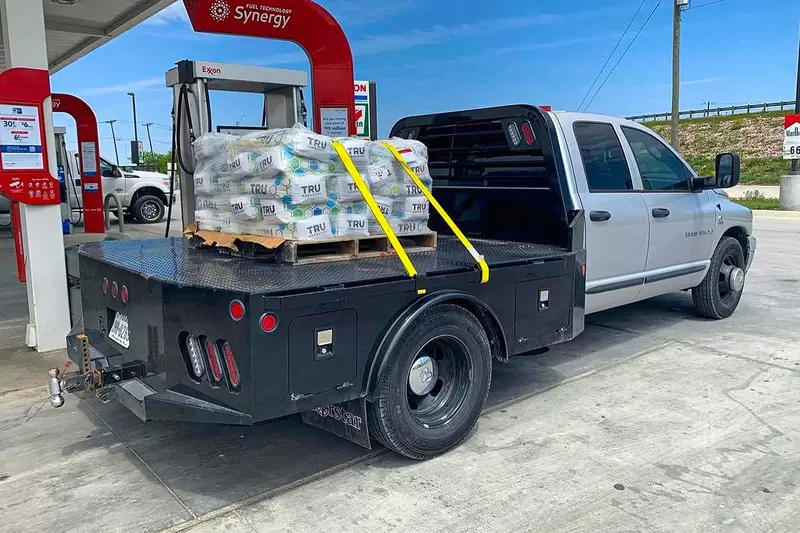

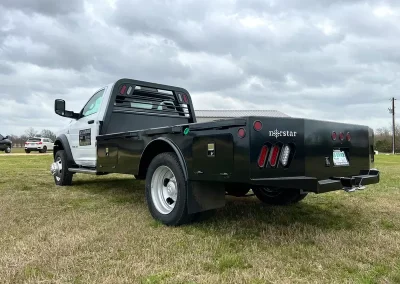

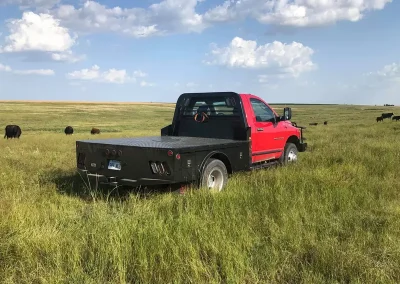

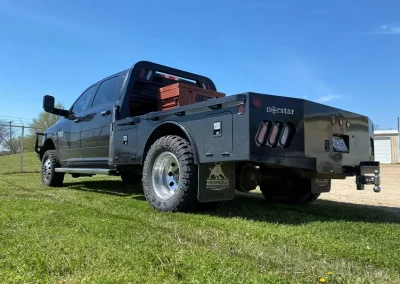

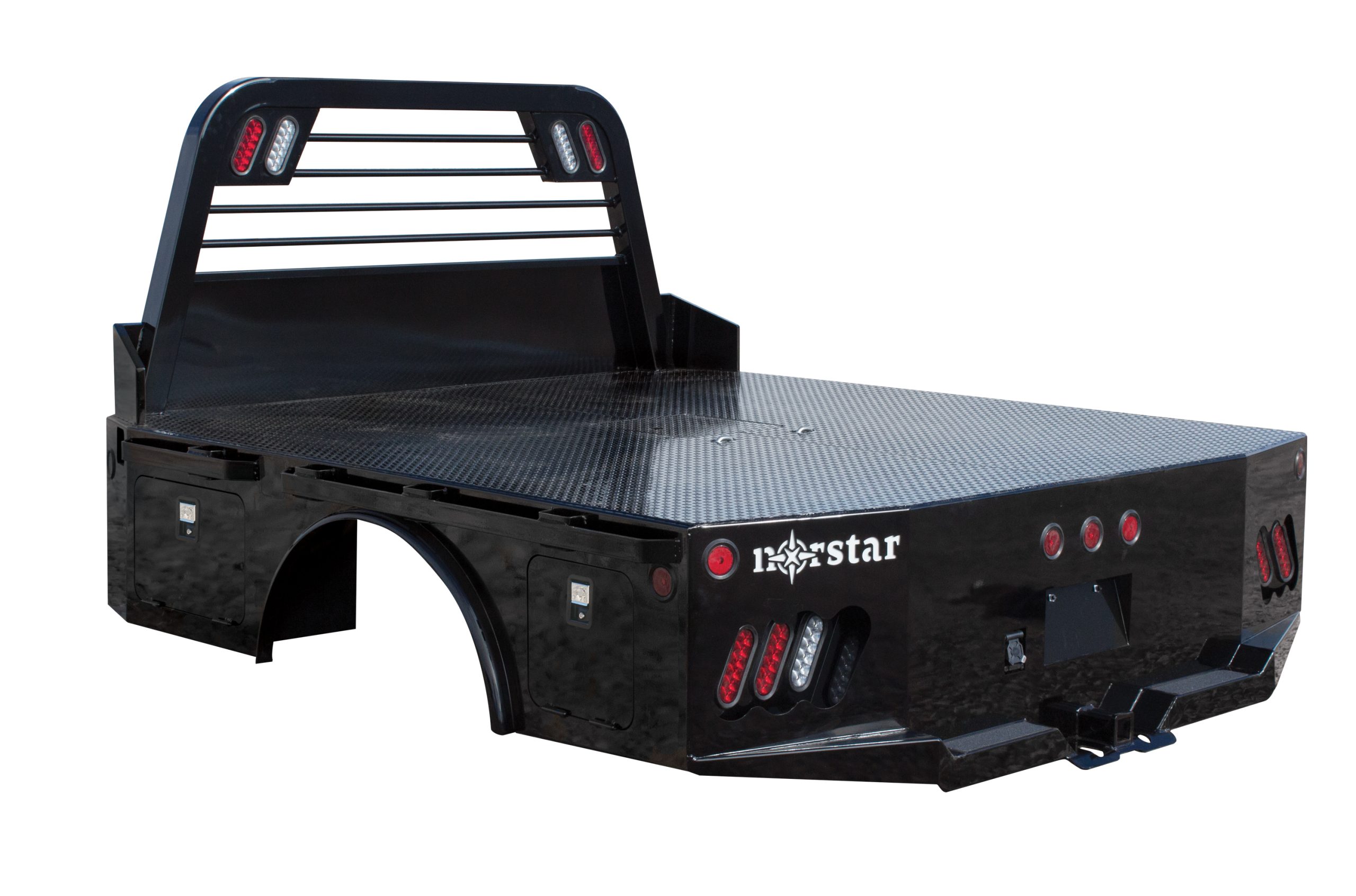

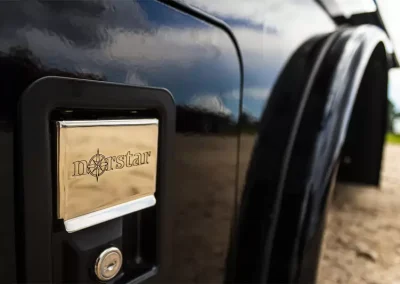

Need a working truck bed with a little extra built in storage? Our ST skirted truck bed might be just for you. This bed has many features, some of which include four locking boxes (standard) as well as 10 gauge sides, mated with the 11 gauge full skirted bumper. This bed is the perfect fit for any single or dual wheeled work truck and can keep up with your daily workload.

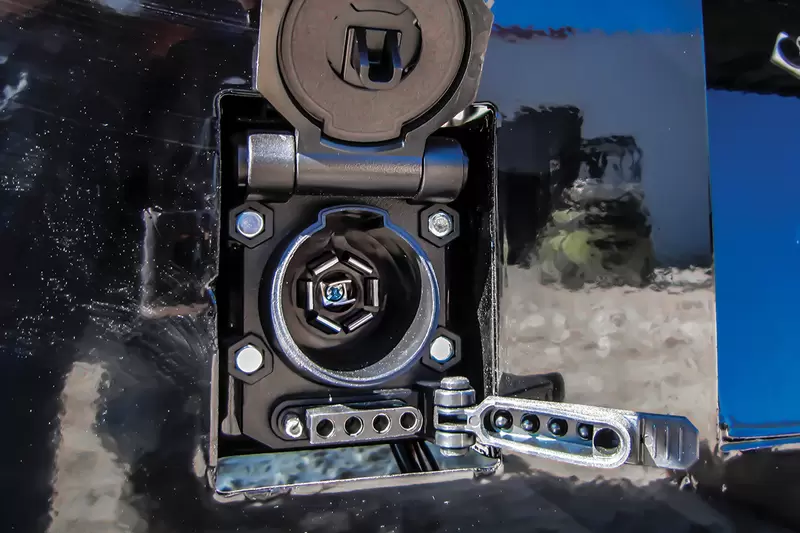

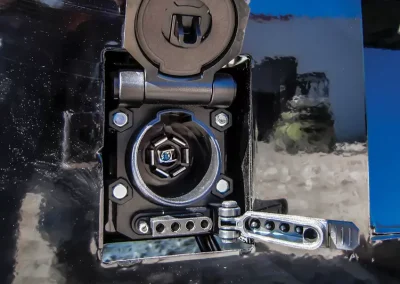

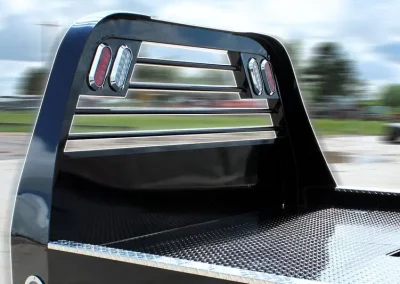

The standard 2.5” receiver allows you to add a hitch for bumper pull cargo, and a 2 5/16” gooseneck ball is standard in case you are hauling a heavyweight. Our receivers are lab tested and certified for 18,500 lbs bumper capacity and 30,000 lbs gooseneck capacity. 1/8” Diamond plate flooring will give you a lifetime of duty and both 7 way and 4 way towing plugs make sure you can hook up and go any time. Standard lifetime LED lights ensure you will never be left in the dark, and the tubular steel headache rack will protect your cab from most anything you can throw its way. Standard angled corners help you maneuver into tight spaces and standard exposed rub rail and stake pockets give you plenty of contact points for securing any load. Check out our optional features and build a bed to suit your workload today.
*HB1 is an optional upgrade available on select model truck beds. HB1 is designed to transport a single bale of hay over short distances in an agricultural setting. When hay forks are not in use they must be stored in a designated location. While hay forks are not in use it is not recommended to operate vehicle at highway speeds. HB1 option is designed for lifting and transporting a single bale of hay only. Any other use is not recommended.

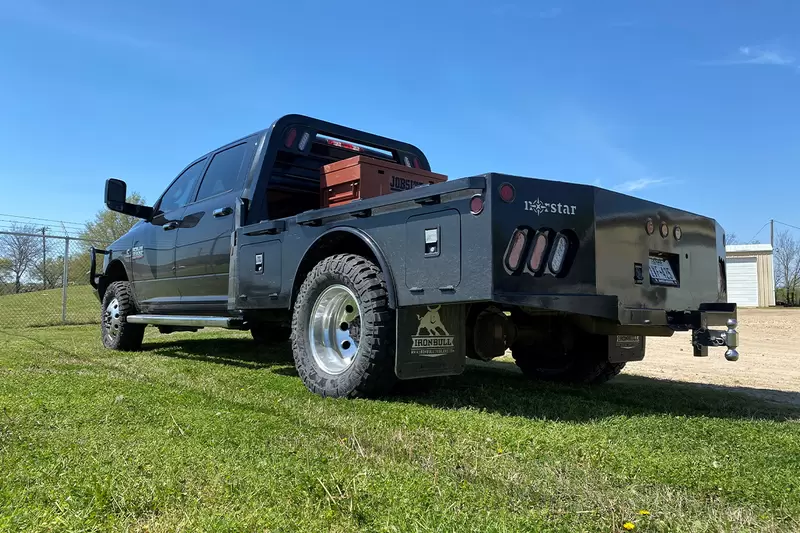

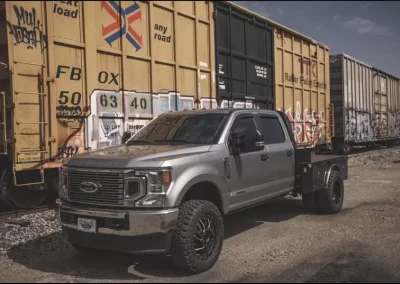

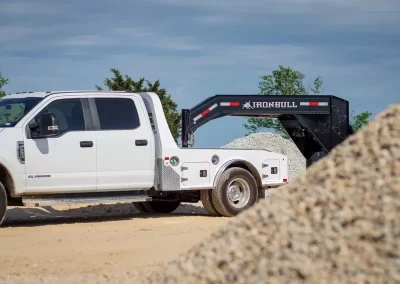

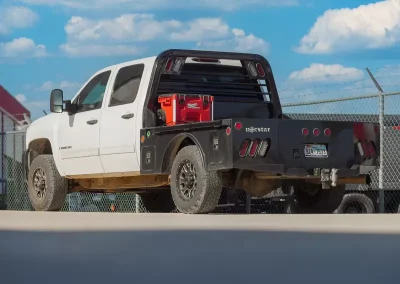

Gallery

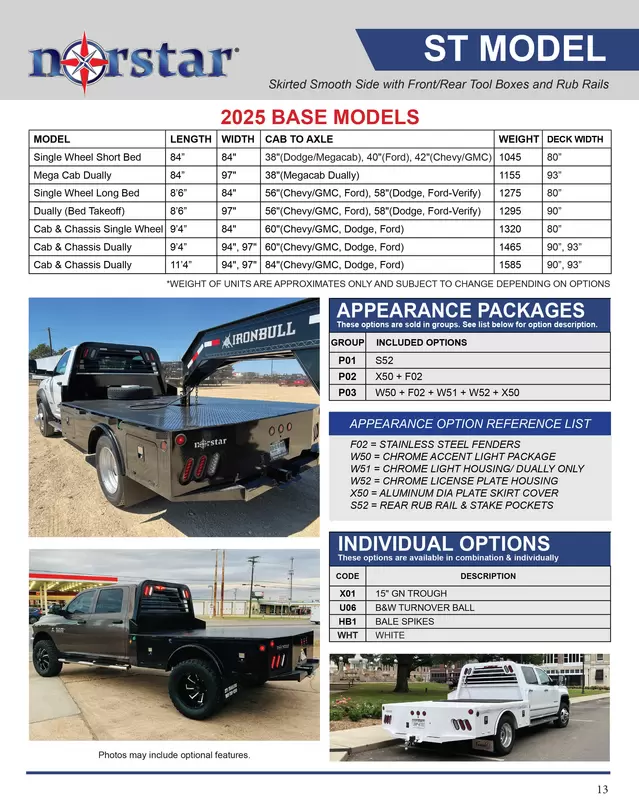

Bed Size Guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
-
Length: Measurement from cab to end of frame.
-
Width: Measurement from outside of tire to outside of tire
-
CTA: Measurement from cab to axle
-
Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
-
Models: ST, SF, SR, SD
-
Order Method: Model x Length x Width x CTA x Runner
-
Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
1998-Present
-
Dually – 8’6”L x 97”W x 56” CTA x 38” Runners
-
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner
-
Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner
-
Cab & Chassis – 9’4”L x 94”/97''W x 60”CTA x 34” Runners
- F-450 & 550 are 94” & 97”W with Standard Headache Rack
-
2015 F650 Runners 34.5”
2001-Present
-
Dually – 8’6”L x 97”W x 56”CTA x 42” Runners
-
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner
-
Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner
-
Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners
-
(Prior to 2000 measurements will be required)
-
4500 & 5500 is 94”W with 60” Headache Rack
2003-Present
- 2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
- Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
- Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
- Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
- Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
- Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
- 2002 and earlier will have 56” CTA and 38” Runners on long bed
Plug N Play Installation Adapters
Installation Adapters
The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:
-
1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)
-
1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)
-
1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)
-
1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)
-
1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)
-
1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)
WH
Overview

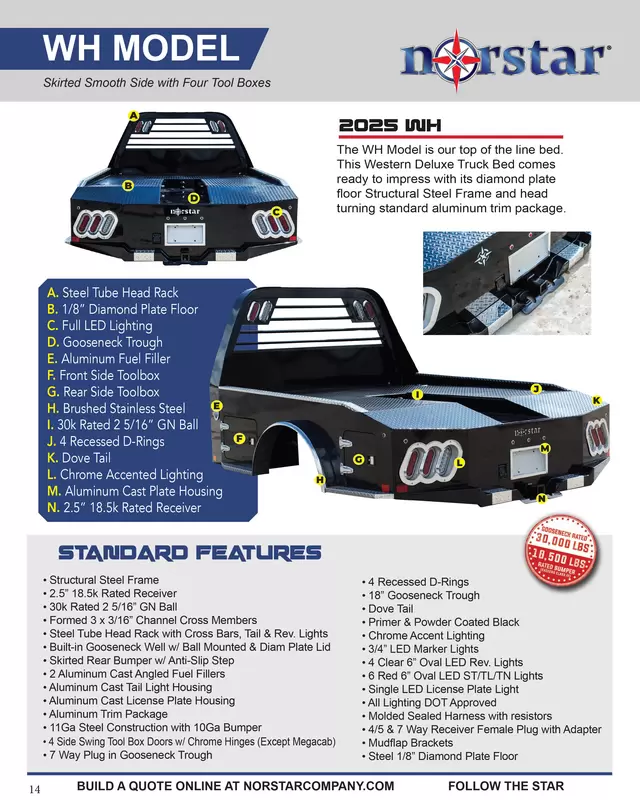

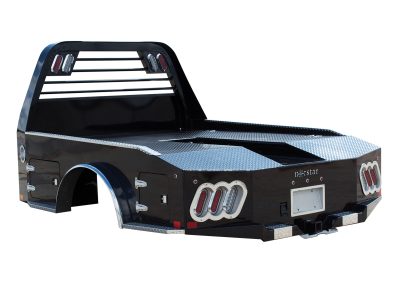

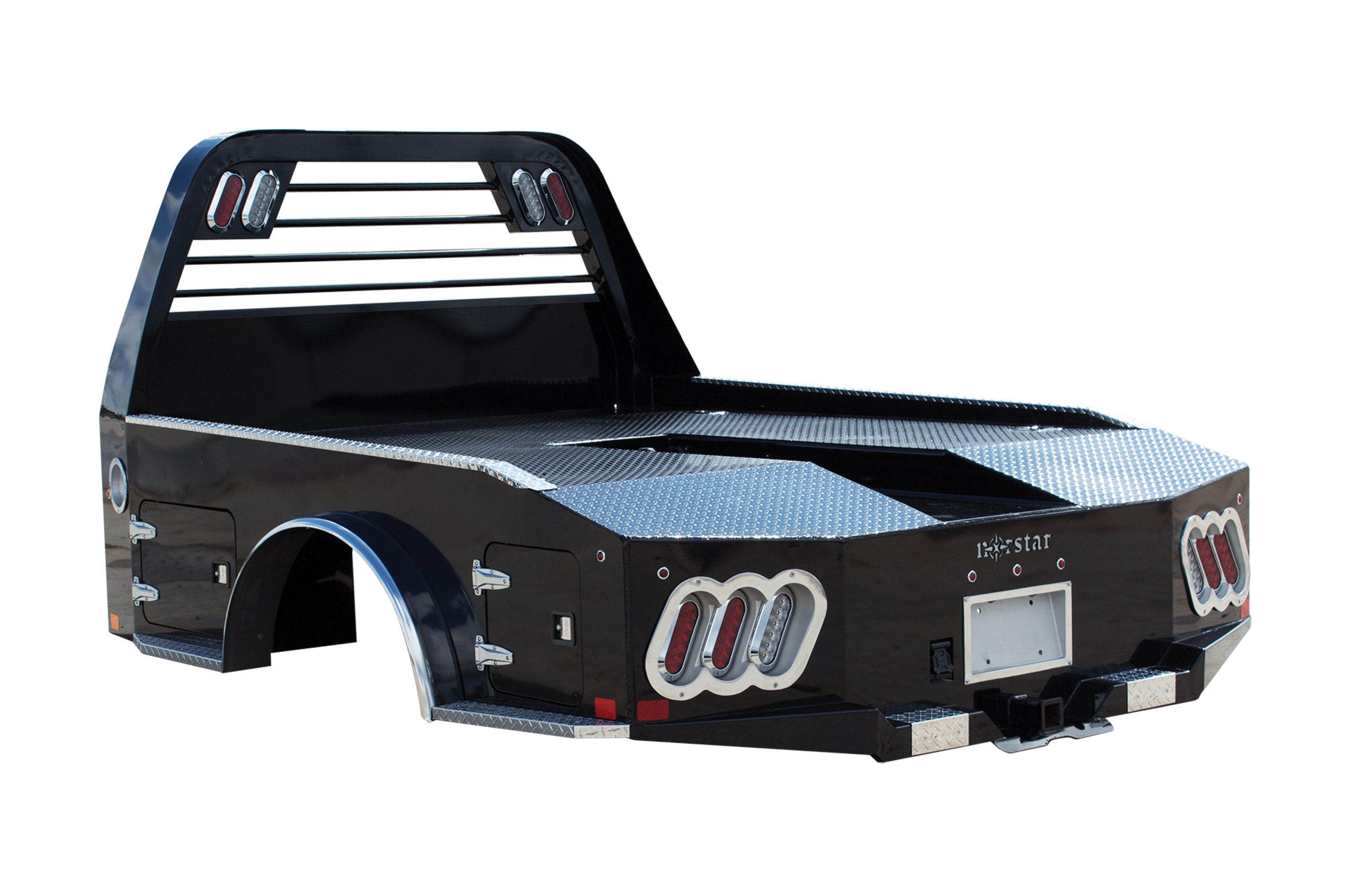

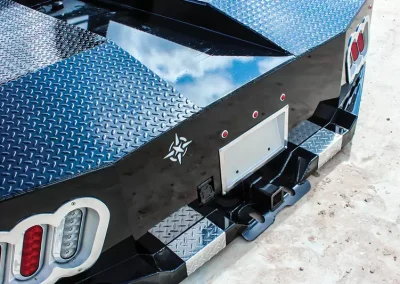

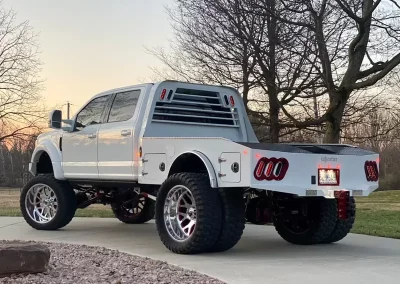

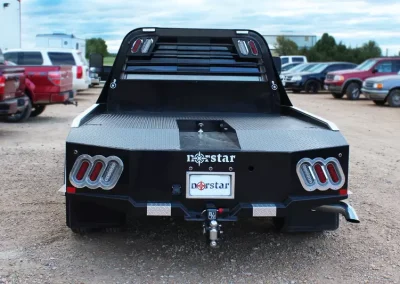

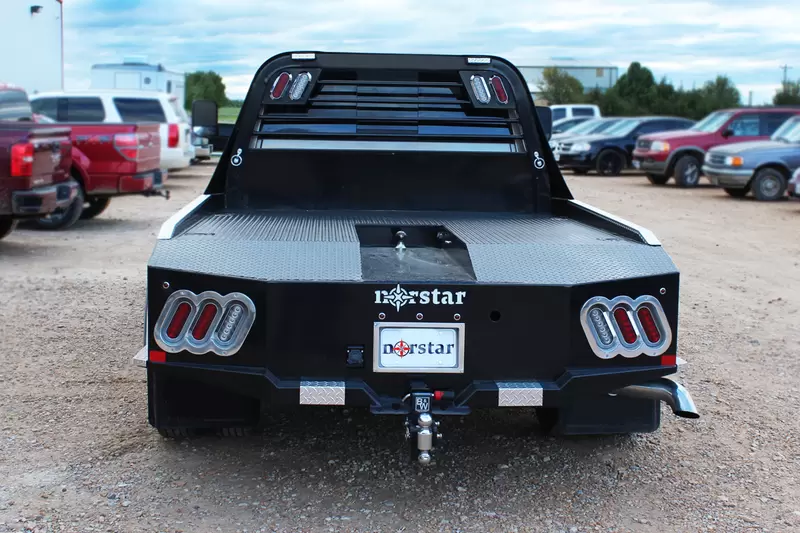

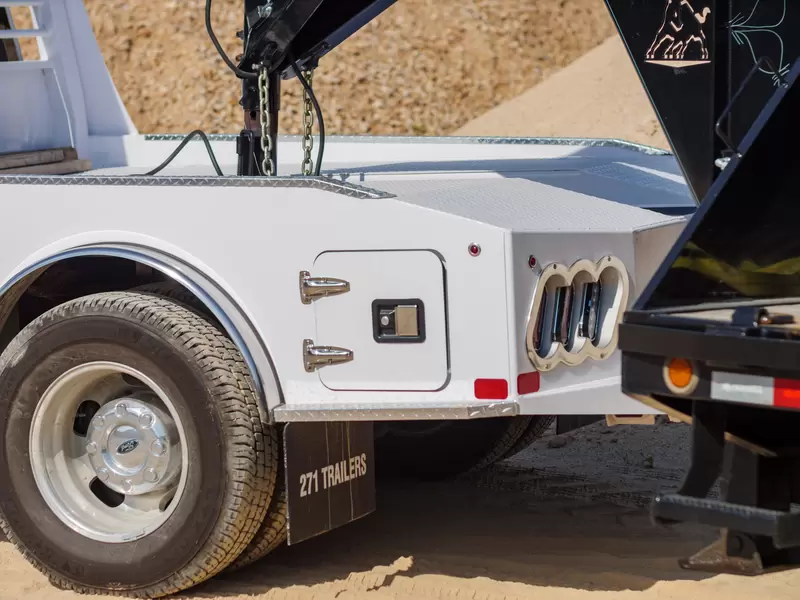

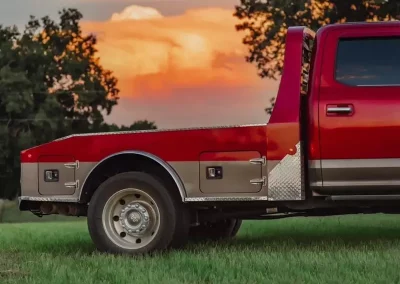

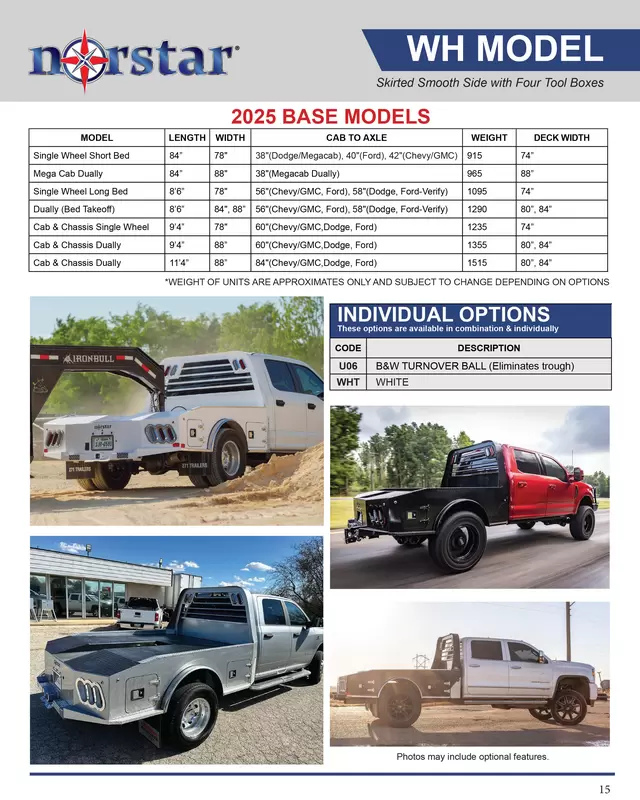

The WH Western Deluxe Bed is our top of the line bed. It is sure to win first in class when you combine it with your first class hauling rig. Accessories abound and the details have been sweated to ensure spectacular fit and finish. But this bed is not all show, it has the same rugged construction as every Norstar bed and can haul anything your rig can pull.

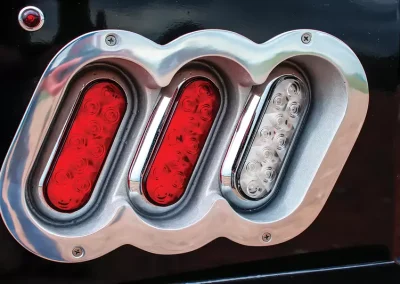

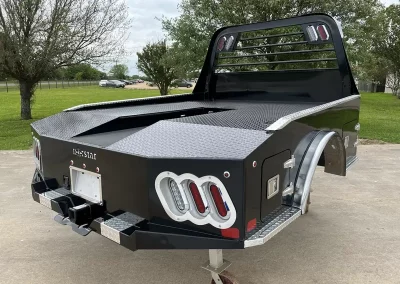

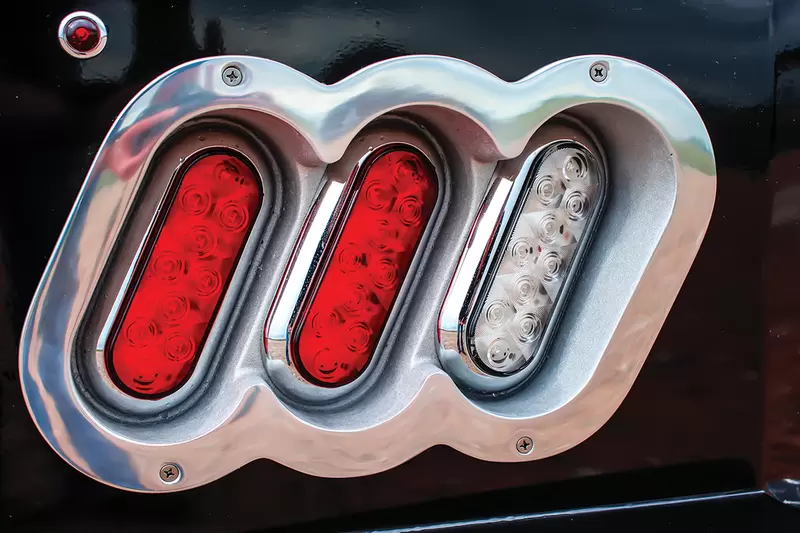

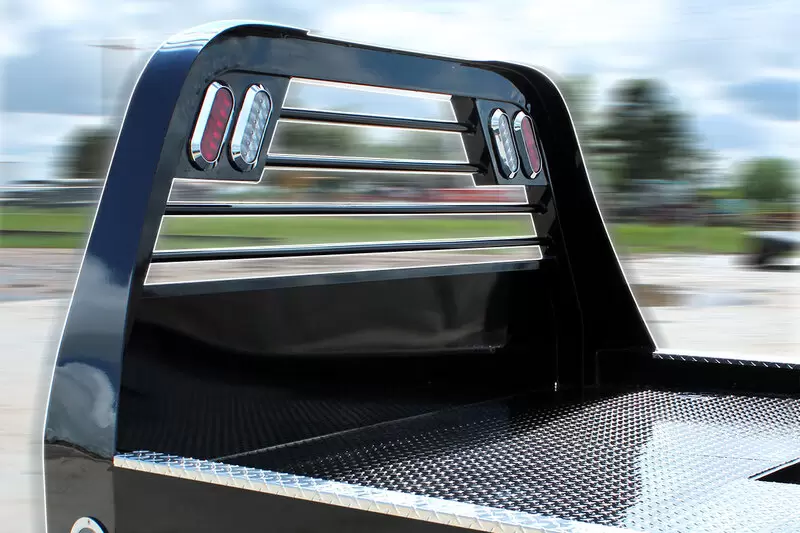

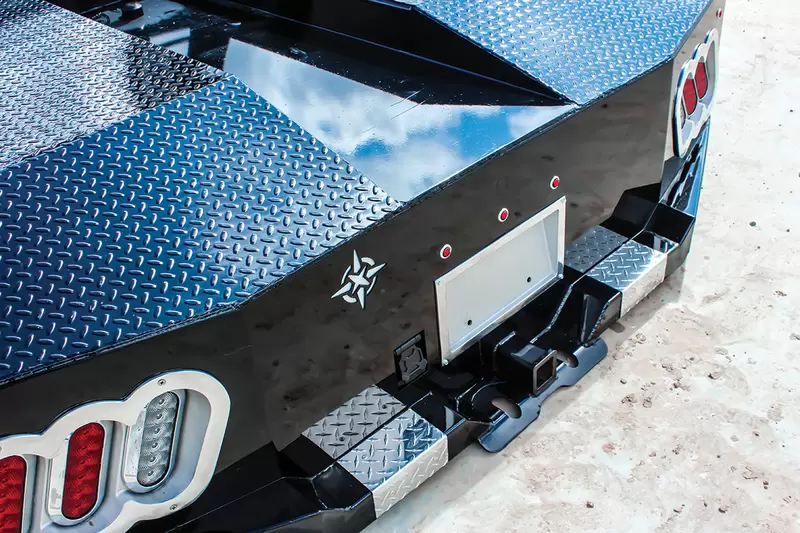

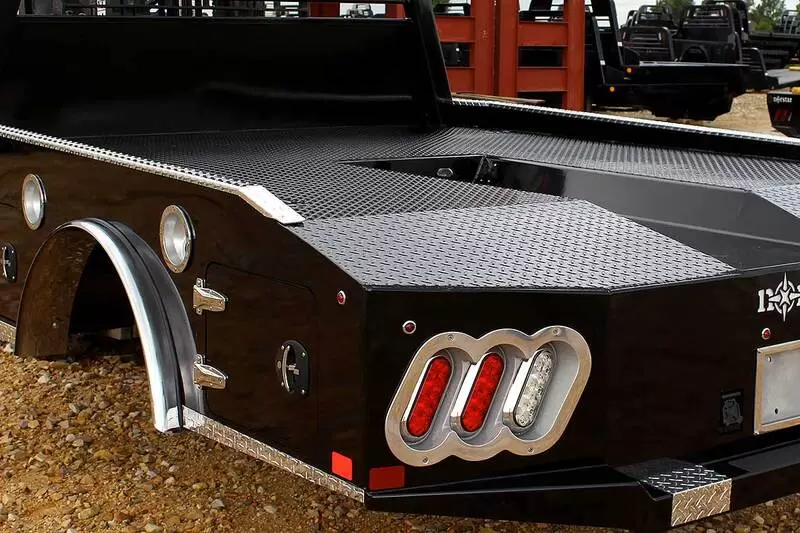

The standard 2.5” receiver allows you to add a hitch for bumper pull cargo and a 2 5/16” gooseneck ball is standard in case you are hauling a heavyweight. Our receivers are lab tested and certified for 18,500 lbs bumper capacity and 30,000 lbs gooseneck capacity. This bed is the perfect fit for any single or dual wheeled work truck and can keep up with your daily workload. The WH comes equipped and ready to impress loaded with 1/8” diamond plate floor and 10 gauge sides, with 11 gauge skirted bumper coated in gloss black powder coat. We have put just about every option on this bed except the kitchen sink – standard including cast housings on rear lighting, fuel filler, license plate mount, chrome accented head rack lighting, running boards and loads of diamond plate trim. Go to work – in style.

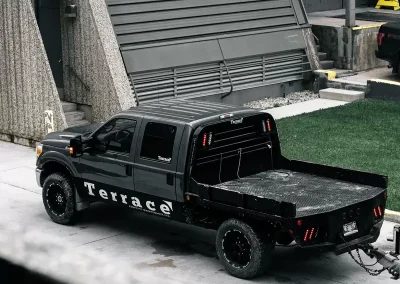

Gallery
Bed Size Guide
Use this guide when ordering your Norstar truck bed. Please observe the measurements of each dimension and check before placing your order.
- Length: Measurement from cab to end of frame.
- Width: Measurement from outside of tire to outside of tire
- CTA: Measurement from cab to axle
- Runner: Measurement from outside of frame to outside of frame at the rear of the frame.
- Models: ST, SF, SR, SD
- Order Method: Model x Length x Width x CTA x Runner
- Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
- Models: ST, SF, SR, SD
- Order Method: Model x Length x Width x CTA x Runner
- Example: ST 9’4”L x 97”W x 60”CTA x 34” Runners (Add options) Note: 11’ long beds will have 84” CTA
1998-Present
-
Dually – 8’6”L x 97”W x 56” CTA x 38” Runners
-
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 38” Runner
-
Single Wheel Short Wheel Base – 84”L x 84”W x 40”CTA x 38” Runner
-
Cab & Chassis – 9’4”L x 94/97”W x 60”CTA x 34” Runners
- F-450 & 550 are 94” & 97”W with Standard Headache Rack
-
2015 F650 Runners 34.5”
2001-Present
-
Dually – 8’6”L x 97”W x 56”CTA x 42” Runners
-
Single Wheel Long Wheel Base – 8’6”L x 84”W x 56”CTA x 42” Runner
-
Single Wheel Short Wheel Base – 84”L x 84”W x 42”CTA x 42” Runner
-
Cab & Chassis – 9’ 4”L x 90” or 92”W x 60”CTA x 34” Runners
-
(Prior to 2000 measurements will be required)
-
4500 & 5500 is 94”W with 60” Headache Rack
2003-Present
-
2007 Cab and Chassis – 9’4”L x 94”W x 60”CTA x 34” Runner
-
Mega Cab – 84”L x 97”W x 40” CTA x 42” Runners
-
Mega Cab – 84”L x 84”W x 38” CTA x 42” Runners
-
Dually – 8’6”L x 97”W x 58”CTA x 42” Runners
-
Single Wheel Long Wheel Base – 8’6”L x 84”W x 58”CTA x 42” Runner
-
Single Wheel Short Wheel Base – 84”L x 84”W x 38”CTA x 42” Runner
-
2002 and earlier will have 56” CTA and 38” Runners on long bed
Plug N Play Installation Adapters
Installation Adapters
The standard wire harness plug on Norstar beds will fit most GM vehicle factory harnesses. We also offer a variety of plug n play adapters that will vehicles year models by the following manufacturers:
-
1001010 WIRE HARNESS ADAPTER DODGE, CAB CHASS (YEAR 2000-CURRENT)
-
1001009 WIRE HARNESS ADAPTER FORD, CAB CHASS (YEAR 2000-CURRENT)
-
1001011 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE CURRENT (YEAR 2011-CURRENT)
-
1001013 WIRE HARNESS ADAPTER FORD, PICK-UP BOX DELETE w/ STOP ADAPTOR (YEAR 2011-CURRENT)
-
1001012 WIRE HARNESS ADAPTER GM, ADAPTER (YEAR 2015)
-
1001014 WIRE HARNESS ADAPTER GM, PICK-UP BOX DELETE (YEAR 2010-2014)
